5×6 Cedar Sauna Materials Package

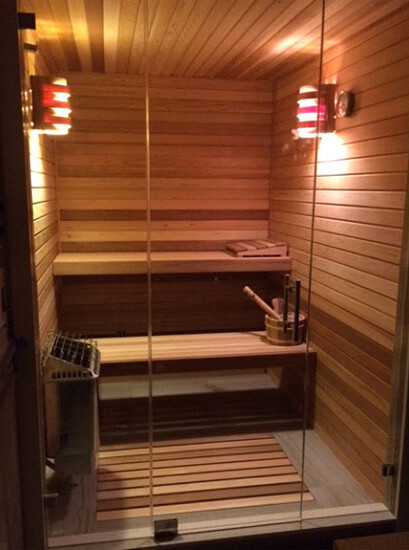

all glass front wall
all glass door / T&G front
D60 light under bench
precut sauna heater package
in home 4x6 sauna
Framed, Clad and Insulated Sauna Door + 13x13" Window
Sauna Materials Package with Accessories
Sauna bench facing. Adds a back rest to your low sauna bench
Cilindro sauna heater, relay box and control
Combination sauna with traditional hot rock heater with an Infrared Light box and Salt Lamp Bucket Ladle
Click the 🔎 symbol in the main pic to read the caption

PRE-SALES FAQS

How do I design my sauna?

Basically just follow steps 1 ➟ 2 ➟ 3 ➟ 4 …

Start Designing Your 5×6 Sauna Room

Use our interactive website to build your sauna in these steps:

Set Your 5×6 Sauna Plan

Set the layout of your heater, door and up to 3 sauna benches

Choose Your Sauna Door

Set your door style, swing, frame size, window size, cladding direction, etc.

Select Your Sauna Heater

A 5×6 sauna requires a 6kW heater. Options: Built-in controls, External, Digital or WiFi

Explore More Sauna Options

Glass front wall, Flooring, Bench style, Seat width, Accessories bundle, Lights and Windows

Watch our Video: How to Order a Sauna Materials Package

We break down each step and answer some common questions

Easily Create a Quote!

Build your sauna in your shopping cart. Then, on the Check Out page, click the “Convert Order to a Quote” button. To put a 50% deposit down, please call us: 1.800.426.3929
What's included in the price?

Cedar lumber to line an existing 5×6×7′ room, 6kW heater, 3 benches and the door, basically …

Everything to construct a sauna in an 5×6 existing room or structure

The plan, materials and components to complete your 5×6×7 sauna interior:

Clear 1×3″ cedar covers the ceiling + 4 walls (less the door)

3 Benches (15.5 LF Max) and Leg supports. All pre-built with NO visible fasteners

Pre-hung Sauna Door fits 24×82″ R.O. with custom jamb / Options for low ceilings

6kW Sauna Heater with Built-in controls / Options for External, Digital or WiFi

Sauna Foil Vapor Barrier + Accessories Bundle + Interior Trim Pack

Max Interior Coverage (WxLxH):

5′15/8″×6′15/8″×7′3/4″ = 210 cu. ft. — see options for ceiling height
Includes 170 sq. ft. of 1×3″ clear western red cedar T&G paneling (+ one extra board per wall)

What's required of me to start?

Not much. You’re likely still in the sauna planning phase

Our 5×6 SMP fits your existing 5×6×7 room

For now, we just want to make you aware of these phases and skills for it all to come together

Measurements and Joist Direction

Measuring walls (#1-5) and ceiling joist direction is NOT required to begin your quote or order. Once you’ve built walls #1-5 or you have a plan, send us dimensions and indicate ceiling direction (See Wall TAB in Step 4)

NOTE: Before installation, walls must be framed at ~5×6 ft with a ~7 ft ceiling and a 24×82″ door R.O. (see options). Heater appliances work best with in/exit wall vents!

Electrical Preparation

Your electician will run wire for the sauna heater, light and switch through studs and return later to connect them after you’ve insulated the walls, tacked up the sauna foil vapor barrier and covered the walls in cedar paneling. A 5×6 sauna room uses: 6 kW heater / 240V / 30 amp breaker / 10 gauge wire

Light Carpentry Skills to Build a Sauna

T&G (Tongue & Groove) boards require field trimming to affix to the ceiling and walls. Install the pre-built benches, guard rail, flooring (optional) and trim to cover all seams. Please watch our Sauna Kit Construction Video Series

See our complete prep list before sauna installation (if Cedarbrook installs your sauna)

What are the contruction steps involved?

You have an existing 5×6×7 room OR you’ll frame one in

PREPARATION AND CONSTRUCTION: VARIES 3-8 WEEKS

Main Steps to Constructing a Sauna Room using our Sauna Materials Package
Watch our Install a Sauna Materials Package in New Construction Video

Structural Preparation

  • Construct studs and joists for a 7′ ceiling, typically. If you have existing drywall, NO need to remove it (if walls are insulated)
  • Frame a 24×82″ R.O. (Rough Opening) for your door
  • Add blocking for the vents (4×6″ common). In small indoor saunas you can use a <1″ gap under the door as an intake vent

Electrical Preparation

  • Review the electrical capacity of your service panel for available Amps A 5×6 sauna room uses: 6 kW heater / 240V / 30 amp breaker / 10 gauge wire
  • Run electrical wire planning for the heater, lights, switch and external controls (optional)

Build Your 5×6 Cedar Sauna!

  • Insulate the walls with formaldehyde-free batting (source locally)
  • Staple sauna foil vapor barrier (provided) to the joists & studs — Do NOT skip!
  • Trim and nail your cedar paneling to the ceiling first, then the walls
  • Start first T&G row near the floor. Go round the room. Check corner seams line up
  • Install sauna door (you can order a custom jamb)
  • Install the sauna benches and add the facing (optional)
  • Nail corner seams and trim the door
  • Build the duckboard flooring (optional) in removable sections

Power Up!

  • Hang heater on the wall (if wall-mounted type)
  • Next, your electrician will return to connect the heater, controls, sensor, light/s and switch, etc.
  • Make sure they test your heater!
  • Load your heater with rocks loosely for best air flow and take a sauna! Enjoy and send us pictures

POST-SALES FAQS

I ordered my sauna ... What's next?

Thank you for making a great investment in your health!

Epic western red cedar lumber is bundled for your 5×6 Sauna Materials Package

After your sauna purchase (or 50% deposit), you can expect the following phases

SAUNA DIAGRAM REVIEW & APPROVAL

We review your order and make sure the design and components fit

  • We create scale drawings of your sauna project per your order, emails and conversations
  • We send an email when drawings are ready for your review
  • Uploaded Floor Plan drawings live specifically on your My Account page under each order
  • Open the drawings via the My Account page OR the email we sent you
  • Return to the My Account page to add notes, replace the drawing OR approve it
  • We’ll repeat this process with a NEW sauna drawing until it’s the sauna project you’re expecting
  • Once you’ve approved your Floor Plan, then your 5×6 sauna will become a work order in our production queue

PRODUCTION QUEUE

Sauna project goes into our production queue

  • Cedar lumber is pulled in bundles for your Sauna Materials Package + one extra board per wall or ceiling
  • Your sauna door and benches are built or pulled from stock
  • Your sauna heater is pulled from stock. In some cases, it is drop-shipped separate from your pallet
  • A trim kit is prepared and all items on your order are cross-checked and labeled
  • Your order is crated, palletized and wrapped for the weather in our Woodinville or Cashmere facility

SHIPPING / LOCAL DELIVERY / PICK-UP

Prior to shipping your sauna project, we ask for your remaining balance due. So if you put 50% down, we’ll prompt you for that

  • We email you a BOL (Bill of Lading) document with the pertinent numbers to help you receive your pallet
  • Pallet gets delivered locally by Cedarbrook Sauna OR shipped via a third-party LTL (Less Than a Truck Load) Common Carrier OR you pick up with your own truck or trailer✲
  • See the FAQ titled: “What to expect when receiving a sauna?” for more details

✲ Alaska, Hawaii and CANADA — Ships via freight forwarding, i.e., we deliver to a third party shipping company

Do you install the sauna materials too?

Sauna Kit Installation Quote

Yes, we install our 5×6 sauna materials package

Installation is quoted separately from the package. Although we ship all over the U.S., we can ONLY do sauna installations in and around the Pacific Northwest in Washington state

Basic Information

  • It is NOT necessary for us to visit your site to give you a quote. You can send us pictures of your site or condition via email: info@cedarbrooksauna.com
  • You can also hire a contractor or handy man. A sauna installation can vary from 25 – 40% of the package price. Send them to our sauna videos page and ask them if they can handle it
  • To send your electrician the proper information. Installation instructions regarding heaters are in tabs lower down on every heater page. Find your heater on our website first and send them the link.
  • Please read our installation prep list on this page: How to Prepare for My Sauna Installation?

Minimum requirements

  • Install site < 100 mile radius of our showroom in Woodinville, WA. We sometimes make exceptions
  • We do NOT do electrical work. Your electrician will install your sauna heater, lights and switches and test them!
  • We do NOT do structural work. Your general contractor or handy man will build walls, lower your ceiling to ~7′, make a ~24×82″ rough opening for your door, add blocking for vents and insulate (batting)
  • SAUNA INSTALLATION: We affix the vapor barrier, fasten cedar T&G to the interior, install benches, door, vent covers, guard rail and flooring, mount heater and trim all seams and door

Conditions Affecting a Quote

To give a proper quote, we factor for the following conditions:

  • Distance to deliver your sauna. We wave delivery charges if we do the installation
  • Actual build site. Will your sauna go in the basement or over a bridge, then onto a goat trail? Please tell us what conditions to expect in your email or your notes
  • Work Flow. Your site condition may restrict where we can actually make wood cuts. If we must walk more than 20 feet to cut outside, then it will add to the time and cost
What to expect when receiving a sauna?

A large crate you’ll need to unpack

Your 5×6 Sauna Materials Package

We ship via several Common Carriers for All 50 U.S. States & Canada ✲

PICK UP

  • You may pick up in Woodinville or Cashmere, WA locations
  • Items are loaded manually or by forklift into your vehicle by our staff
  • If local, you may pick up items in stages as available
  • Also available, pick up your freighted sauna at the destination terminal

DELIVERY

  • Someone MUST be present upon delivery to sign
  • Freighted sauna packages are palletized and weather-tight
  • Larger saunas (>7ft) may be declared too large for the lift gate by the truck driver and require 2 able persons to offload the materials from the truck upon delivery
  • The freight company’s obligation is to deliver your pallet curbside or as close as possible. It is the truck driver’s discretion to offload in your drive way

OFF LOADING — [Watch our off-loading sauna video]

  • Helpful Tools: Flat/crow bar, hammer, utility knife, cordless drill and 4′ ladder
  • Saunas ship on large pallets; commonly e.g., WxLxH: 4′×7′×3′ or over
  • Doors weigh 125 lbs (max). One able-bodied person can handle it
  • The trucking company allows 30 minutes to offload. If you can NOT, please use the Freight + Lift Gate Service method (NOT offered if your pallet is ≥ 84″)
  • Prepare to move your items onto your premises in a dry location

SCHEDULING

  • If freighted, we ONLY schedule deliveries once your sauna is crated
  • We will provide a BOL (Bill of Lading) document with your Pro # to your email address
  • The Pro # is used to coordinate and locate your shipment

NOTICE

The freight cost shown at checkout is a quote as lead times and more reasons below may alter the final freight cost

  • Fuel price swings are beyond our abilites to forecast
  • Freight delivery to mountainous or dense urban areas can result in overcharges. Our shipping algorythm does not always catch such conditions
  • If buying a large sauna (≥10 ft+) and need to save on shipping, give us a call for options

✲ Alaska, Hawaii and CANADA — Ships via freight forwarding, i.e., we deliver to a third party shipping company

Still have questions?

We have more answers in our Sauna FAQs  |  Sauna Videos  |  Phone support: 1.800.426.3929

5×6 Cedar Sauna Materials Package

Install our 5×6 Cedar Sauna Materials Package in your New Construction or Sauna Remodel Project

Build an epic home sauna for health and well-being. Enjoy the cedar aroma as radiant heat soothes nerves, opens pores and settles your mind

Follow our plan + video instructions to build your own home sauna

Sauna installation is a light carpentry project. Our materials package includes everything for the DIYer to complete a 5×6 sauna room in your existing room or structure — must be pre-wired and insulated. If you want to assemble a sauna kit on a floor or base, please see our INDOOR OR OUTDOOR sauna kits

Includes the plan, cedar lumber, sauna door, benches and 6kW heater to complete a 5x6x7 sauna interior in your existing room or structure.   LEAD TIME: 6-8 weeks

  • We invite you to ...

    Create a quick quote

    Convert Your Order to a Quote!

    On the Checkout Page, you can click: "Convert this Order to a Quote"

    DO NOT ENTER your Credit Card. Later, you can put a 50% deposit to get your order started

    For now if you're in a hurry, just click "Add to Cart" below

    And the site will prompt you for ALL required options

    OR mix and match your preferred sauna door and heater to your liking and we'll deduct the price of our standard components from the package price. Thank you for shopping!

    1Start Designing Your Sauna Floor Plan!

  • Front Wall

    Benches

    Door

    Heater

    GENERIC FLOOR PLAN

    Below is our GENERIC FLOOR PLAN

    We create a custom floor plan (and an elevation plan for outdoors kits) after you make a deposit

    In the steps below, you can affect your FLOOR PLAN and ELEVATION plan. Before we actually build your sauna, we ask for your approval of any plans uploaded to your MyAccount area

    • Sauna Plan — Our plans cover most sauna layouts
    • Heater — We show the popular ones or substitute another or procure your own
    • Door — 3 basic styles or substitute a custom one or none (if an SMP)
    • Explore options for Flooring, Benching, Seat Width, Lights and Windows etc
    • IF OUTDOORS: Roof type, overhang, waterproofing material and color

    NOTE: The DOOR SWING shown in these plans is just the typical one. You'll choose your swing (and other options) when you select your door style, height, etc.

    Sauna Plan Diagram: 5X6GPC-LWCRB3

    Sauna Footprint: 5′ 8″ × 6′ 8″

    Sauna Footprint for our Sauna Kits

    In our 5 × 6 Sauna Kits, the USEABLE INTERIOR floor space is exactly 5 × 6
    EXTERIOR DIMENSIONS: 5′ 8″ × 6′ 8″
    See ALL measurements and details in the "Kit Specifications" button (at right)

    QUESTION: Also we're sometimes asked ... What size should my base or floor tray be for our OUTDOOR SAUNA KITS, so rain water sheds OFF of ALL sides of the sauna?

    ANSWER: You should build your base at: 5′ 63/4″ × 6′ 63/4″. Our 1x8x3/4″ beveled cedar siding will extend just beyond this dimension, so water sheds nicely away!

    [ NOT TO SCALE / 6x8 PLAN SHOWN HERE ]

    FLOOR PLAN ELEMENTS

    Wall Panels #1-

    Wall Panels #1 –

    Pre-built wall and ceiling panels are HIGHLY insulated (4″thick / R-20)

    Made of 100% Western Red Cedar — even the frame!
    NO glues or plywood are EVER used

    Red lines shown are wall panel seams. Each wall panel weighs 100-150 lbs. with a default height of 6′4″. If your sauna is a Trumpkin design (8′4″ ceiling height), then much heavier, 175-200 lbs.

    Refer to the wall panels numbers #1- when placing items during the sauna design step or if adding a note so we know exactly where you'd like an item

    For example if adding a window (later), pick the wall panel number. See below Step 4 > Windows. You can move lights, vents, switch, controls, etc as needed too by indicating in the final notes box (above the Add to Cart button)

    Walls: 1-5 + Joists

    Walls: #1 – 5 + Joist Direction

    To send you correct T&G cedar board lengths ...
    • Measure walls #1-5 (or estimate if NOT yet built) and
    • Indicate your Ceiling Joist Direction in Step #4 > Walls
    RE: Ceiling Joist Direction

    IF your sauna is SQUARE (W=L), then your ceiling panel board can only be one length, but if your room is a RECTANGLE then it's IMPORTANT to know your ceiling joist direction. OR if you don't like your curent ceiling direction, you can change it in Step 4 > Walls > Joist Direction

    RE: Drywall and Windows
    • DRYWALL — IF you already have drywall up, there's NO NEED to REMOVE it. IF your walls are insulated, venting is available and you can run wiring, you're good. If not, there's some planning to do
    • WINDOWS — Add them below in Step 4 > Windows

    Benches: A, B, C

    Sauna Benching

    Our sauna benches are made of 100% Western Red Cedar with NO VISIBLE fasteners

    This 5x6′ Sauna Material Package includes 3 sauna benches with NO KNOTS

    • Benches are fixed OR optionally slide out of the way
    • Our standard bench WIDTH is 18″
    • Standard bench HEIGHT is 20″ (LOW) and 40″ (HIGH)
    • Facing (or skirting) and back rests are optional
    • Our 4 bench plans include one 22″ wide HIGH bench

    All sauna bench features can be adjusted in Step 4

    NOTE: We NEVER cut sauna benches to custom lengths — This should ALWAYS be done on site, as your measurements may change slightly. They're built in foot increments only

    Need more head room? You can change your door and ceiling height in Step 2 > Choose Your Sauna Door

    Benches: A, B, C

    Sauna Benching

    Our sauna benches are made of clear 100% Western Red Cedar with NO VISIBLE fasteners

    This 5x6′ Modular Sauna Kit includes 3 sauna benches with NO KNOTS

    • Benches are fixed OR optionally slide out of the way
    • Our standard bench WIDTH is 18″
    • Standard bench HEIGHT is 18″ (LOW) and 36″ (HIGH)
    • Facing (or skirting) and back rests are optional
    • Our 4 bench plans include one 22″ wide HIGH bench

    All these features can be adjusted in Step 4

    Need more head room? You can change your door and ceiling height in Step 2 > Choose Your Sauna Door

    6 kW Heater

    6kW Sauna Heater

    A 6 kW heater is included with our 5x6′ Modular Sauna Kits / Volume = 210 cu. ft. (with default 6′4″ ceiling height)
    • Upgrade your heater or choose NO heater IF you have one
    • We add blocking in the walls to hang wall-mounted heaters, especially HUUM DROP heaters

    Some notch their benches to create more room. Benches can also be recessed. We've seen many creative sauna plans over the decades since we started (1971)

    NOTE: Wall-mounted heaters are VERY HOT at the top third. The middle is warm and the bottom of the shroud body is actually cool. Our LOW benches seat tops are 18-20″ off the floor, so you can place benches closer to wall-mounted heaters at these heights

    6 kW Heater

    6kW Sauna Heater

    A 6 kW heater is included with our 5x6′ Sauna Material Packages / Volume = 210 cu. ft. (with default 7′0″ ceiling height)
    • Upgrade your heater or choose NO heater IF you have one
    • Add blocking in the walls to hang wall-mounted heaters
    • Heaters can be rotated (90°) to an adjacent wall, IF 2 ft is available

    Some notch their benches to create more room. Benches can also be recessed. We've seen many creative sauna plans over the decades since we started (1971)

    NOTE: Wall-mounted heaters are VERY HOT at the top third. The middle is warm and the bottom of the shroud body is actually cool. Our LOW benches seat tops are 18-20″ off the floor, so you can place benches closer to wall-mounted heaters at these heights

    Door Swing

    Sauna Door Swing

    Rail & Stile Door + 16x67″ Glass is included in our 5x6′ sauna

    Sauna doors ALWAYS open out as a safety precaution

    The door swing shown is our suggestion. It's a bit easier when reaching for the built-in heater controls to prop the door open with your backside

    Set your door swing when choosing your door in Step 2

    NOTE: Doors come with one handle as they're self-closing. Mount the handle on the outside of the door

    Flooring

    Optional Duckboard Flooring

    We offer a grating to cover your hard floor

    See Step 4 > Flooring. Choices are None, Walking Area Only or the Entire Floor

    Installing Duckboard flooring is the LAST step when building a sauna
    Purpose of Duckboard:
    • Duckboard is removable, so you can easily clean!!
    • Warms to the bare foot
    • Conceals an ugly floor / see cedar everywhere
    • We provide the materials. Assembly required

    Vents

    Sauna Venting

    Vents ensure adequate fresh cool air enters the sauna and some hot air exits

    You can move the vents as needed per your site condition. Hot air (that's exiting) should be vented into any adjacent room or an attic, sometimes outside is the only option, but NEVER into a wall cavity. Also, NOT that much heat actually leaves the sauna

    Can I vent under the door?

    Yes! In smaller sauna rooms (<4x6) it's fine to use a < 1″ gap under the door without a dedicated INTAKE vent

    In larger saunas (>4x6), venting ONLY under the door will put a strain on the sauna heater appliance. Heaters are designed for cold air to easily pass through the rocks and over the elements heating the sauna room. It breathes better and so will you!

    Vent Size Rule:
    • If heater < 9kW, use 4x6″ vents
    • If heater ≥ 9kW, use 6x8″ vents

    Vents

    Sauna Venting

    Vents ensure adequate fresh cool air enters the sauna and some hot air exits

    We can move the vents as needed per your site condition, let us know in the notes above the Add to Cart button. Hot air (that's exiting) should be vented into any adjacent room. Also, NOT that much heat actually leaves the sauna

    Vent Size Rule:
    • If heater < 9kW, use 4x6″ vents
    • If heater ≥ 9kW, use 6x8″ vents

    Light / Switch / Control

    Lights / Switch / Controls

    Move these items as needed per your site condition

    Just refer to the Wall number #1-5 and/or Bench letter (A, B, C, etc.) in the final notes box (above the Add to Cart button)

    • LIGHTING — One light is included in the Accessories Bundle

      Generally, we place the light on an open wall OR above a LOW bench but NOT above the sauna heater. Note, you can add lights under the benches too. See Step 4 > Lights

    • SWITCH — Usually best placed on the open side of the door (if there's space)
    • EXTERNAL CONTROLS — Our generic sauna plans show a heater with built-in controls. If you upgrade your heater, we'll place these controls next to the switch or specify where

    Of course, when you actually install these items, do what you want. This is just for our Sauna Plan drawing and so we're both on the same page when discussing your sauna

    Light / Switch / Control

    Lights / Switch / Controls

    Move these items as needed per your site condition

    Just refer to the Wall Panel number #1- and/or Bench letter (A, B, C, etc.) in the final notes box (above the Add to Cart button)

    • LIGHTING — One light is included in the Accessories Bundle

      Generally, we place the light on an open wall OR above a LOW bench but NOT above the sauna heater. Note, you can add conduit and lights under the benches too. See Step 4 > Lights

    • SWITCH — Usually best placed on the open side of the door (if there's space)
    • EXTERNAL CONTROLS — Our generic sauna plans show a heater with built-in controls. If you upgrade your heater, we'll place these controls next to the switch or specify where

    Add a Changing Room

    Add a Changing Room

    Changing Rooms can only be added to 4x6′ and larger saunas. The Changing Room wall's smallest dimension will be 4 feet

    It's best connect the sauna to the changing room, it works best usually to place your "SAUNA DOOR" on the SHORT Wall

    Later, the "DOOR for the CHANGING ROOM" will go:
    • On a LONG WALL with a SLOPED ROOF, or
    • On the SHORT WALL with a PEAKED ROOF

    To add the changing room, SEE the MAIN MENU: SAUNAS > CHANGING ROOMS

    PLAN CODE: 5X6GPC-LWCRB3

    Is this my FINAL PLAN?

    Is this my FINAL Sauna Plan? No!

    It's a GENERIC FLOOR PLAN so you can easily review your basic design choices

    We'll draft a FLOOR plan and sometimes an ELEVATION plan and post them to your MyAccount page. There you can add notes, upload your own drawing and once ready, bless it for our production queue.

    Also, see the Post-Sales FAQ (near the top): "I ordered my sauna ... What's next?" to fully understand the work flow, but basically ...

    After your order is processed and we receive a 50% deposit:
    1. We'll draft NEW sauna plan/s for your review
    2. Then review, revise and approve your sauna plan using the MyAccount page
    3. Once we have your full blessing, we create internal Work Orders for your sauna, door, benches, etc.
    4. After it's built, we deliver locally and via third party common carriers who will arrange delivery with you

  • 2 Choose Your Sauna Door + Interior Height

  • Select your Door Rough Opening and Ceiling Height for your 5x6 Sauna Materials Package

    Door R.O.

    Door Rough Opening

    Our common rough openings for sauna doors:
    TypeRough OpeningCeiling Height
    SHORT24x72″6′2″+
    TALL24x76″6′6″+
    RESIDENTIAL24x82″7′0″+
    WIDE30x82″7′0″+
    COMMERCIAL38x82″7′0″+

    IMPORTANT: If you want to browse our other doors PLEASE set your Door's Rough Opening (R.O.) and your sauna Ceiling Height, so you'll land on the correct door page in a later step. Thanks!

    Ceiling Height

    Ceiling Height = Headroom

    Figure below is the actual headroom! The ceiling panels will add 4 INCHES. IF this is an OUTDOOR sauna kit, the roof adds ~ 2 FEET additional.

    Saunas heat from the TOP DOWN. For most residential saunas, ceiling joists should be built at roughly 7′0″.  Also know, that MOST residential sauna heaters are rated for ceilings 8 ft and lower.

    Of course, you'll sweat just as well or better in a lower ceiling too. But metal sheeting fire protection is required if a ceiling < 6′2″ from the sauna floor. Defer to the manufacturer's installation manual in all cases for distance from top of heater to ceiling.

    Residential (24x82″) Sauna  Doors Do NOT Fit Ceilings < 7′0″+

    Please change your Ceiling Height to 7′0″+ - OR- Choose a SHORT or TALL Door R.O.

    Tall (24x76″) Sauna  Doors Do NOT Fit Ceilings < 6′6″+

    Please change your Ceiling Height to 7′0″+ - OR- Choose a SHORT Door R.O.

    IMPORTANT: Higher ceiling may require a sauna heater KW UPGRADE

    CHOOSE YOUR 24x72″ SAUNA DOOR

    MORE SAUNA DOOR CHOICES ARE AVAILABLE

    FYI, 90% of our customers choose either our Rail & Stile OR Clad Sauna Door

    • FIRST FINISH adding this 5x6 indoor Sauna to your cart

    • Then, we'll show you a few more designer doors OR if you need a custom size, choose the common size greater than yours and we'll make it for your Rough Opening

    • For now, you'll get a deduction for our 24x82″ Rail & Stile door INCLUDED in the price of this 5x6 indoor Sauna

    Click "Standard Door Selection" to return and choose from our most popular doors

    NO DOOR | CUSTOMER SUPPLIES DOOR

    Awesome! Use your own sauna door

    • Make sure you've selected the correct Door R.O. size (above) that fits with your Ceiling Height option choice

    • Of course, you'll get a deduction for our standard 24x82″ Rail & Stile door INCLUDED in this 5x6 indoor Sauna

    Click "Standard Door Selection" (or another R.O. size) to return to our popular doors

    CHOOSE YOUR 24x76″ SAUNA DOOR

    MORE SAUNA DOOR CHOICES ARE AVAILABLE

    FYI, 90% of our customers choose either our Rail & Stile OR Clad Sauna Door

    • FIRST FINISH adding this 5x6 indoor Sauna to your cart

    • Then, we'll show you a few more designer doors OR if you need a custom size, choose the common size greater than yours and we'll make it for your Rough Opening

    • For now, you'll get a deduction for our 24x82″ Rail & Stile door INCLUDED in the price of this 5x6 indoor Sauna

    Click "Standard Door Selection" to return and choose from our most popular doors

    NO DOOR | CUSTOMER SUPPLIES DOOR

    Awesome! Use your own sauna door

    • Make sure you've selected the correct Door R.O. size (above) that fits with your Ceiling Height option choice

    • Of course, you'll get a deduction for our standard 24x82″ Rail & Stile door INCLUDED in this 5x6 indoor Sauna

    Click "Standard Door Selection" (or another R.O. size) to return to our popular doors

    CHOOSE YOUR 24x82″ SAUNA DOOR

    MORE SAUNA DOOR CHOICES ARE AVAILABLE

    FYI, 90% of our customers choose either our Rail & Stile OR Clad Sauna Door

    • FIRST FINISH adding this 5x6 indoor Sauna to your cart

    • Then, we'll show you a few more designer doors OR if you need a custom size, choose the common size greater than yours and we'll make it for your Rough Opening

    • For now, you'll get a deduction for our 24x82″ Rail & Stile door INCLUDED in the price of this 5x6 indoor Sauna

    Click "Standard Door Selection" to return and choose from our most popular doors

    NO DOOR | CUSTOMER SUPPLIES DOOR

    Awesome! Use your own sauna door

    • Make sure you've selected the correct Door R.O. size (above) that fits with your Ceiling Height option choice

    • Of course, you'll get a deduction for our standard 24x82″ Rail & Stile door INCLUDED in this 5x6 indoor Sauna

    Click "Standard Door Selection" (or another R.O. size) to return to our popular doors

    WIDE AND COMMERCIAL SIZE DOORS ARE AVAILABLE

    CHOOSING 30x82″ OR 38x82″ SAUNA DOORS

    We can't present our Wide or Commercial Doors here

    • So FIRST FINISH adding this 5x6 indoor Sauna to your cart

    • Then, we'll show you these wider doors for spa settings or special circumstances. If you need a custom door size, choose the common size greater than yours and we'll make it for your Rough Opening

    • When considering your design in Step 1, note that a wider door takes more space along the front wall and will affect your bench layout

    For now, you'll get a deduction for our 24x82″ Rail & Stile door INCLUDED in the price of this 5x6 indoor sauna

    NO DOOR | CUSTOMER SUPPLIES DOOR

    Awesome! Use your own sauna door

    • Make sure you've selected the correct Door R.O. size (above) that fits with your Ceiling Height option choice

    • Of course, you'll get a deduction for our standard 24x82″ Rail & Stile door INCLUDED in this 5x6 indoor Sauna

    Click "Standard Door Selection" (or another R.O. size) to return to our popular doors

    • Rails + Stiles Sauna Door / Sauna Kits

      • Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Rail & Stile Door Options

        Placement

        ❯ Door Swing

        ❯ Door RO

        Change rough openings at the top of step #2

        Glass / Finish

        Glass / Finish

        ❯ Jamb Width

        Measure Your Door Jamb

        All our sauna doors include UP TO a 51/4″ jamb
        Your door jamb is the sum of your wall thickness, e.g.:
        • 3/4″ T&G cedar — 11/16″
        • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
        • Drywall — usually 1/2″

        DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

        Trim covers the gap between the jamb and the wall stud

        Sauna Door Jamb diagram

        Sauna Door Jamb Diagram

        IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

        Jamb Width

        Jamb Extension Material

        Jamb Extension Material

        If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

      • Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Hinge Finish

        Hinge Finnish

        Standard hinges have a Brass finish. Silver is an option

        Residential doors include 1 self-closing bomber hinge and 2 conventional hinges. Commercial doors include 2 self-closing bomber hinges and 2 conventional hinges

        Door Handle

    • Clad Sauna Door for Sauna Kits

      Original price was: $1,475.Current price is: $200.
      • NOTE: We've deducted the price of the Rail & Stile Sauna Door + 16x67″ Window (included in this package)
        NOTE: We've deducted the price of the Rail & Stile Sauna Door + 16x55″ Window (included in this package)

        Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Traditional Clad Sauna Door Options

        Placement

        ❯ Door Swing

        ❯ Rough Opening

        ❯ Rough Opening

        Window Size

        Jamb

        ❯ Jamb Width

        Measure Your Door Jamb

        All our sauna doors include UP TO a 51/4″ jamb
        Your door jamb is the sum of your wall thickness, e.g.:
        • 3/4″ T&G cedar — 11/16″
        • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
        • Drywall — usually 1/2″

        DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

        Trim covers the gap between the jamb and the wall stud

        Sauna Door Jamb diagram

        Sauna Door Jamb Diagram

        IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

        Jamb Extension Material

        If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

        T&G Width

        T&G Width

        T&G Direction

        T&G Cladding Direction

        Tongue & Groove paneling is clad to the door in which direction?

        T&G = Tongue and Groove is the cedar material we affix to the door's frame (interior and exterior)

      • Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Hinge Finish

        Hinge Finnish

        Standard hinges have a Brass finish. Silver is an option

        Residential doors include 1 self-closing bomber hinge and 2 conventional hinges. Commercial doors include 2 self-closing bomber hinges and 2 conventional hinges

        Door Handle

    • EL 10 All Glass Sauna Door / Variable Rough Opening

      Original price was: $1,710.Current price is: $435.

      • All Glass Door Options

        Our EL-10 All Glass Door allows variable dimensions

        The base price is for a 26x72″ R.O. (Rough Opening) with CLEAR glass. Options below adjust for door size and glass finish. Common sizes are: 26x72″, 26x76″ and 26x82″

        OUR ALL-GLASS DOORS ARE NOT PRE-HUNG. As we must pack them tightly for freight shipping. IF you're local or we are installing the door, then it will be pre-hung. Otherwise, your jamb is shipped pre-cut and ready for assembly on site. Thx!

        Placement

        ❯ Door Swing

        Common Rough Opening: 26 x 82″ — Fits 7′ ceiling (OR your ceiling height less 2″)

        Note: This is not a misprint; 26″ width works best in sauna remodel projects

        Enter your R.O. below

        ❯ Width / RO

        ❯ Length / RO

        Glass Finish

        EL-10 Price Calculation

        See MAIN image gallery to see differences in glass finishes. Gray is GRAY!

        Our EL-10 All Glass Door base price is for a 26x72″ RO with CLEAR 3/8ths glass. Actual door is 24x71½″. We account for the difference of your door and finishes. That cost is shown here – Thx

        ❯ Jamb Width

        Measure Your Door Jamb

        All our sauna doors include UP TO a 51/4″ jamb
        Your door jamb is the sum of your wall thickness, e.g.:
        • 3/4″ T&G cedar — 11/16″
        • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
        • Drywall — usually 1/2″

        DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

        Trim covers the gap between the jamb and the wall stud

        Sauna Door Jamb diagram

        Sauna Door Jamb Diagram

        IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

        Omit Jamb

        Omit Jamb Material

        Two reasons you'd want to check this:
        • You've sourced your own jamb material
        • OR you plan on adding a glass wall

        Instead, down below in "Explore More Sauna Options > Walls tab, you'll add an all glass front wall. There you can add the jamb for the entire front wall instead

        Jamb Extension Material

        If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

        Glass Finish Examples

        Glass Types 1000 | Bronze | Clear | Satin Etched | Rain

      • Hardware Finish

        Door Handle

        Sauna Back to Back Wooden Door Handle

        Bolts show the OC (On Center) detail for holes in the glass door

        Wood Handle Glass Sauna Door

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Door Stops

        Door Stops Included

        Includes 3/4″ stops

        Stops ensure the resting position for the door is sealed, so heat does not escape

        Notes

    • Arched and Plugged Solid Core Sauna Door / 24x82 RO

      Original price was: $2,200.Current price is: $825.

      • Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Rail & Stile Door Options

        Our doors have many more options than we can present here for a package, so if you prefer to browse even more options, choose "Substitute Door". But 90% of our customers choose these doors

        Placement

        ❯ Door Swing

        Window

        ❯ Jamb Width

        Measure Your Door Jamb

        All our sauna doors include UP TO a 51/4″ jamb
        Your door jamb is the sum of your wall thickness, e.g.:
        • 3/4″ T&G cedar — 11/16″
        • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
        • Drywall — usually 1/2″

        DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

        Trim covers the gap between the jamb and the wall stud

        Sauna Door Jamb diagram

        Sauna Door Jamb Diagram

        IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

        ❯ Jamb Width

        Measure Your Door Jamb

        All our sauna doors include UP TO a 51/4″ jamb
        Your door jamb is the sum of your wall thickness, e.g.:
        • 3/4″ T&G cedar — 11/16″
        • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
        • Drywall — usually 1/2″

        DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

        Trim covers the gap between the jamb and the wall stud

        Sauna Door Jamb diagram

        Sauna Door Jamb Diagram

        IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

        Jamb Extension Material

        Jamb Extension Material

        If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

      • Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Trim Pack

        Door Trim Pack

        The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

        Hinge Finish

        Hinge Finnish

        Standard hinges have a Brass finish. Silver is an option

        Residential doors include 1 self-closing bomber hinge and 2 conventional hinges. Commercial doors include 2 self-closing bomber hinges and 2 conventional hinges

        Door Handle

  • 3 Select Your Sauna Heater

  • CHOOSE A SAUNA HEATER

    Choose Your Sauna Heater

    The first heater is priced into this kit

    To be honest, we're big believers in the simplicty of these rock-solid heaters with built-in controls. The wiring is super simple and they have the fewest problems. If you're not sure what heater fits your needs, then pick the first one (below) and we look forward to a conversation

    The deductions below are the price of the first heater when you browse for an alternate or you have your own

    Wall-mounted heaters hold ~45 lbs of rocks; Cilindro freestanding heaters hold about 160-180 lbs of rocks

    BROWSE MORE 6kW SAUNA HEATERS

    Shown by Control Type or Feature:
    Built-in
    Analog
    WiFi + Apps
    Wet/Dry
    External
    Digital
    Woodburning
    Infrared Lights

    • But FIRST FINISH adding this 5x6 indoor Sauna to your cart

    • Next, you'll compare 6kW Sauna Heaters shown by control type

    • For now, you'll get a deduction for our standard heater included in the price

    Click "Standard Heaters" to return and choose from our most popular heaters with built-in controls

    NO HEATER | CUSTOMER SUPPLIES HEATER

    Awesome! Use your own 6kW sauna heater (or higher)

    • Please let us know what heater you're using in the box below

    • For now, you'll get a deduction for our standard heater (the first one is included in this 5x6 indoor sauna)

    Click "Standard Heaters" to return

    We offer dozens of sauna heaters and can NOT present them all here. Control options are Built-in, External, Analog, Digital, WiFi + Apps, Wet/Dry, Infrared Lights and Woodburning. Select a standard heater OR browse more heaters. The FIRST heater below is included

    6kW HEATERS with BUILT-IN CONTROLS

    6kW Heaters with Built-in Controls

    While we pride ourselves on designing a HOT SAUNA!
    NOTE that you can always turn down the thermostat (1-10) if you prefer lower temperatures. Enjoy!

    FEATURES
    • Built-in Controls operate with 1-8 hr delay / 60 min. Timer / Thermostat
    • Controls can be relocated on left or right side of sauna heater shroud
    • Includes Vulcanite sauna rocks + guard rail
    • Req: 240V / 30 Amp breaker / 10 Gauge Wire

    ROCK CAPACITY / Wall-mounted heaters ~ 45 lbs; floor-mounted ~ 160 lbs

    Are Built-In Controls Better?

    Why Choose a Heater with Built-in Controls?

    1. Long Lasting — Our experience is it's often 10 years before any parts need replacing
    2. Cost — It's the cheaper option, no doubt
    3. Easy to Wire — Simple for an electrician; only 4 wires (2 hots, neutral and ground)
    4. Failure Rate — Low. Digital controls involve motherboards which are sensitive to other conditions. We do like analog controls!
    5. Easy to Diagnose — If you buy a digital WiFi-controlled heater and something goes wrong, we can't diagnose it. There are simply too many factors. So if under warranty, we'll refer you to the distributor with better technicians and tools

    • NO HEATER / Customer Supplies Heater

      • Which Heater Will You Use?

    HEATER INCLUDED: Finlandia FLB-60 / 6kW Sauna Heater

    • Finlandia FLB Series Electric Sauna Heater + Built-in Controls + Rocks

      Finlandia FLB 60 / 6kW Sauna Heater

    HEATER UPGRADE: Finlandia FLBS-60 / Stainless 6kW Sauna Heater

    • FLB stainless

      Finlandia FLB 60S Sauna Heater / Stainless

      Original price was: $980.Current price is: $90.

    HEATER UPGRADE: Finlandia TopClass KV60S

    • Finlandia Topclass KV60S Sauna Heater

      Original price was: $1,548.Current price is: $194.
        KV45S Sauna Heater, KV60S Sauna Heater, KV80S TopClass Sauna Heater

        KV60S Sauna Heater | Wall-mounted stainless 6kW sauna heater with built-in controls for saunas 175 - 280 cu. ft.

        Finlandia Topclass KV60S sauna heater uses only low resistance, stainless steel heating elements with a 45 lb. rock capacity

        FEATURES:

        • Wall-mounted 6kW electric sauna heater
        • Lighted control panel near top of heater
        • Built-in Controls: 1-8 hr delay / 60 min. Timer / Thermostat
        • Controls can be relocated on left or right side (standard) of sauna heater body
        • Includes 45 lbs of Vulcanite sauna rocks

    INCLUDE: TopClass KV Grill

    • KV Topclass Sauna Heater Grill

      KV Topclass Sauna Heater Grill

    HEATER UPGRADE: Harvia Cilindro 6kW

    • Harvia Cilindro 9kW sauna heater | Harvia Cilindro 8kW sauna heater HPC HP | Harvia Cilindro 6kW sauna heater HPC HP

      Harvia Cilindro 6kW Sauna Heater / Built-in Controls

      Original price was: $1,245.Current price is: $230.
    • Vulcanite Sauna Rocks

      Sauna Rocks 45# Box Authentic Finnish Vulcanite

    • Vulcanite Sauna Rocks

      Sauna Rocks 50# Box Authentic Finnish Vulcanite

    • Vulcanite Sauna Rocks

      Sauna Rocks 50# Box Authentic Finnish Vulcanite

  • 4 Explore More Sauna Options

  • Walls
    Floor
    Benching
    Seats
    Lights
    Accessories
    Windows

    WALL MEASUREMENTS + CEILING JOIST DIRECTION

    Enter your wall measurements for Walls #1-5 and your CURRENT joist direction. To adjust ceiling height, see STEP #2 > Ceiling Height (above). You can add a glass wall below — all or partial to create a window of any size! IMPORTANT: Glass is a heat sink, forcing you to upgrade your heater!!

    T&G Material

    T&G Cedar Material Thickness

    T&G = Tongue and Groove – that's the cedar paneling on the walls

    We offer standard 3/4″ material OR IF WxL = 4x4, 4x6, 6x6, 6x8 or 8x8, then you can select 1/2″ material

    FAQ: What's the PROs and CONs of a thinner material?
    THICKNESS 11/16″ vs 7/16″

    PROs of 1/2″ material
    • It looks the same
    • The insulation factor difference is negligible
    • It's saves you some money
    CONs of 1/2″ material
    • It's thinner (7/16″), so it flexes slightly where you lean against the wall
    • Consider adding extra wall blocking at back level height above benches
    • No one will know you saved money

    ❯ Joist Direction

    Actual Ceiling Joist Direction

    To send the correct cedar T&G (Tongue & Groove) lengths, tell us which direction your ceiling joists run

    While standing in the sauna door facing in. LOOK UP!
    Sauna Ceiling Joist Direction 3D

    ► Do your ceiling joists currently run PERPENDICULAR (Front to back) or PARALLEL (Side to Side) or to the DOOR wall?

    ► At right is the point of view after stepping into a sauna room with exposed studs and joists. These joists are running parallel to the door wall

    Wall Material/s

    Enter your sauna room's wall measurements below:

    • Sauna Walls Measurements

      • YOUR SELECTED SAUNA PLAN

        Sauna Plan Diagram: 5X6GPC-LWCRB3

        Set your Door's Swing when choosing your door. It is NOT reflected in the generic image above. Set #1-5 wall measurements in the "Walls" tab. Standard Door Width: 24″

        MEASUREMENTS

        Measure Walls Stud-to-Stud

        Enter measurements for your existing walls #1-5 per your selected SAUNA PLAN (at left)

        If you don't know your final measurements, enter as best you can to assist us in getting your sauna project into our production queue. For all sauna orders, we FIRST prepare a scale drawing for your approval

        We do offer T&G cedar for your exterior wall. To be clear that's NOT what we're asking for here. These measurements ONLY concern your INTERIOR SAUNA WALL

        Wall #1

        Wall #1 in inches

        Immediately Left of Door

        Enter the stud-to-stud measurement from the inside of the door stud to corner stud in inches

        NOTE: In some sauna layouts this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush LEFT to the side wall

        Please ROUND UP to the nearest half inch, but it's worth noting that our interior corner trim cedar material covers up to a ⅝" gap

        • "

        Wall #2

        Wall #2 in inches

        Side Wall Left of Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Please ROUND UP to the nearest half inch, but it's worth noting that our interior corner trim cedar material covers up to a ⅝" gap

        Wall #3

        Wall #3 in inches

        Back Wall Opposing the Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Please ROUND UP to the nearest half inch, but it's worth noting that our interior corner trim cedar material covers up to a ⅝" gap.

        Wall #4

        Wall #4 in inches

        Side Wall Right of Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Please ROUND UP to the nearest half inch, but it's worth noting that our interior corner trim cedar material covers up to a ⅝" gap

        Wall #5

        Wall #5 in inches

        Immediately Right of Door

        Enter the stud-to-stud measurement from the door to corner in inches

        NOTE: In some sauna layouts, this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush RIGHT to the side wall.

        Please ROUND UP to the nearest half inch, but it's worth noting that our interior corner trim cedar material covers up to a ⅝" gap.

    • Glass Front Wall for SMP

      • Glass Source

        All Glass Front Wall > What to Know?

        What to Know about a Glass Front Wall

        Glass front walls add an amazing ambiance to any sauna — Yes!! You're immediately self-invited … just looking at it!! So you're going to take more saunas. That said...
        • YOU MUST UPSIZE YOUR HEATER KW OUTPUT

          Glass is beautiful AND it's also a HEAT SINK / LOSS! ... Every 10 square feet of Glass adds an EXTRA 50 Cu Ft volume of space to heat.
          So 7x7′ wall adds 250 Cu ft to the CC Ft you're already heating for this sauna. 420 cc ft is the max of many 8kW heaters

        • You can't mount a heater to glass, cut it or run wire

          So there's some extra design and planning details … And we're happy to help sort thru them with you

      • YOUR SELECTED SAUNA PLAN

        Sauna Plan Diagram: 5X6GPC-LWCRB3

        Set your Door's Swing when choosing your door. It is NOT reflected in the generic image above. Set #1-5 wall measurements in the "Walls" tab.
        RE: GLASS / PLEASE READ
        NOTE: IF your FRONT wall is glass top to bottom, then a wall-mounted heater, intake vent, light and switch MUST be on other walls OR ... You can simply set the height of your glass to make a shorter wall! In this way, you could also create a window of any size

        ALSO: Standard Glass Door Width = 26″

        Glass Finish

        ❯ Jamb Width

        Jamb Calculation

        Jambs are priced in widths: ≤ 5⅛″ and ≥ 6½″. If your jamb is greater than 7½", then enter 7.5 and add our jamb extension material

        NOTE: This only calculates the jamb of the Front Wall #1 and #5. You can add a second glass wall and it will calculate the cost of the glass but not the jamb. We'll add that separately in our review and sauna drawing of your approval

        Jamb Extension

        Jamb Extension Material

        If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

        MEASUREMENTS

        Measure Stud to Stud to Joist

        Enter measurements for your existing walls #1-5. Refer to your SAUNA PLAN at left

        NOTE: Note our Glass Doors R.O. is 26x72, 26x76 or 26x82 — per your door choice

        If you don't yet know your final measurements, enter as best you can and we'll have a conversation. For all sauna orders, we prepare a scale drawing for your approval before orders go to production

        NOTE: This is a very close quote of your ALL glass wall cost but may change per our conversations and review

        Height R.O.

        Height R.O.

        Please confirm your glass wall rough opening height in inches

        Our website subtracts the cedar cost per square foot from the glass. You are ONLY being charged for the glass

        Wall #1

        Wall #1 in inches

        Immediately Left of Door

        Enter the stud-to-stud measurement from the inside of the door stud to corner stud in inches

        NOTE: In some sauna layouts this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush LEFT to the side wall

        Wall #2

        Wall #2 in inches

        Side Wall Left of Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Wall #3

        Wall #3 in inches

        Back Wall Opposing the Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Wall #4

        Wall #4 in inches

        Side Wall Right of Door

        Enter the stud-to-stud measurement from corner to corner in inches

        Wall #5

        Wall #5 in inches

        Immediately Right of Door

        Enter the stud-to-stud measurement from the door to corner in inches

        NOTE: In some sauna layouts, this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush RIGHT to the side wall

        You choose "Cedarbrook will PROVIDE GLASS" (above).  However, Wall #1 and Wall #5 have NO DIMENSIONS SET. Thus we can NOT calculate your all glass wall charge. Please correct and this warning will disappear. Thanks.

        You choose "Customer is SOURCING GLASS" (above).  However, Wall #1 and Wall #5 have NO DIMENSIONS SET. Thus we can NOT calculate your REFUND for the cedar. Please correct and this warning will disappear. Thanks.

        Dimensions

        Dimensions

    My walls are NOT built yet... What's the maximum coverage of this 5×6′ package?

    5×6′ SMP's Maximum Coverage?

    FAQ: What's the MAXIMUM stud-to-stud-to-joist measurement that fits this 5x6 Sauna Materials Package?
    Set your wall spans at:
    • WIDTH = 5′15/8″
    • LENGTH = 6′15/8″
    • HEIGHT = 7′ 3/4″ *
    IMPORTANT! When maximizing coverage, note you must leave a 3/4″ gap in all corners (except floor). The trim kit provided will cover all corner gaps!

    * NOTE: 3/4″ is the thickness of our standard cedar material. Decrease wall spans by 1/2″, IF you selected 1/2″ material (this option only available IF WxL = 4x4, 4x6, 6x6, 6x8 or 8x8)

    At these dimensions, the sauna benches will fit perfectly with ~1/8″ on each side* — NO need to trim your benches and cutting the cedar boards is minimal. At these dimensions, sauna benches will drop in at an angle without scratching your cedar walls

    DUCKBOARD FLOORING

    Duckboard is offered as 1x3″ smooth cedar material you'll build to cover on your hard floor

    HOW TO BUILD DUCKBOARD

    We provide the materials per below / Assembly Required

    Duckboard Flooring Materials
    • 1x3″ S4S Tops (actual thickness 11/16″)
    • 1x3″ Sleepers (actual thickness 11/16″)
    Overall height 1 3/8 ″
    Fasten up through the bottom of the sleepers using 1″ crown staples or screws, so NO fasteners are exposed to the feet

    Duckboard

    Duckboard Flooring

    We offer a floor cover or grating called Cedar Duckboard that quickly warms to the foot and conceals your HARD floor*

    Build duckboard with our 1x3″ cedar material in small sections. So it's removeable to clean. NO Flooring means your feet touch your HARD floor

    ► Duckboard is ALWAYS built AFTER installing your benches

    * HARD floor is your cement slab, tile, lineoleum, plywood, etc.

    Duckboard

    Duckboard Flooring

    We offer a floor cover or grating called Cedar Duckboard that quickly warms to the foot and conceals your HARD floor*

    Build duckboard with our 1x3″ cedar material in small sections. So it's removeable to clean. NO Flooring means your feet touch your HARD floor

    ► Duckboard is ALWAYS built AFTER installing your benches

    * HARD floor is your cement slab, tile, lineoleum, plywood, etc.

    Extra Flooring

    Extra Flooring

    BENCH LEGS STYLE + FACING + BACK RESTS

    Change your sauna bench style and enhance with facing (or skirting) and back rests

    Bench Facing

    Back Rests

    Back Rests

    ADJUST BENCH SEAT WIDTH

    Widen bench seats in 2 inch increments

    Adjust Bench Seat Width

    Widen or narrow your sauna benches. If widening a low, we'll try reduce the square feet of walking area available. If not possible, then the LOW bench MUST recess under the HIGH bench

    FAQ: What's the SEAT HEIGHT in our Sauna Materials Packages?
    • LOW benches: 20″ (above your existing floor)
    • HIGH benches: 40″ (above your existing floor)

    These dimensions work best at our default ceiling height of 7′0″

    • Sauna Benches

      • YOUR SELECTED SAUNA PLAN

        Sauna Plan Diagram: 5X6GPC-LWCRB3

        Set your Door's Swing when choosing your door. It is NOT reflected in the generic image above. Set #1-5 wall measurements in the "Walls" tab. Standard Door R.O.: 24″

        HIGH Bench "A" Width

        LOW Bench "B" Width

        Additional Bench

        Image does NOT update

        Image Does Not Update Here

        ONLY selections made in Step 1: Design Your Sauna Plan update the image

        We only display generic images here

        After completing your order, we create a scale drawing of your sauna plan with all selected OPTIONS and your NOTES from your order

        We'll email your sauna drawing and ask for your blessing BEFORE your sauna goes into production

        During the review process you'll have opportunities to tweak your design, update products or explore combinations. Thank you.

    • Sauna Benches

      • YOUR SELECTED SAUNA PLAN

        Sauna Plan Diagram: 5X6GPC-LWCRB3

        Set your Door's Swing when choosing your door. It is NOT reflected in the generic image above. Set #1-5 wall measurements in the "Walls" tab. Standard Door R.O.: 24″

        HIGH Bench "A" Width

        HIGH Bench "A" Width

        LOW Bench "B" Width

        HIGH Bench "C" Width

        HIGH Bench "C" Width

        Image does NOT update

        Image Does Not Update Here

        ONLY selections made in Step 1: Design Your Sauna Plan update the image

        We only display generic images here

        After completing your order, we create a scale drawing of your sauna plan with all selected OPTIONS and your NOTES from your order

        We'll email your sauna drawing and ask for your blessing BEFORE your sauna goes into production

        During the review process you'll have opportunities to tweak your design, update products or explore combinations. Thank you.

        In 4x4′ to 4x8′ saunas with Door on LONG Wall, the maximum width for Bench B is 32″

    • Sauna Benches

      • YOUR SELECTED SAUNA PLAN

        Sauna Plan Diagram: 5X6GPC-LWCRB3

        Set your Door's Swing when choosing your door. It is NOT reflected in the generic image above. Set #1-5 wall measurements in the "Walls" tab. Standard Door R.O.: 24″

        HIGH Bench "A" Width

        HIGH Bench "A" Width

        LOW Bench "B" Width

        HIGH Bench "B" Width

        HIGH Bench "B" Width

        HIGH Bench "C" Width

        LOW Bench "C" Width

        LOW Bench "D" Width

        LOW Bench "D" Width

        LOW Bench "D" Width

        (image does NOT update)

        Image Does Not Update Here

        ONLY selections made in Step 1: Design Your Sauna Plan update the image

        We only display generic images here

        After completing your order, we create a scale drawing of your sauna plan with all selected OPTIONS and your NOTES from your order

        We'll email your sauna drawing and ask for your blessing BEFORE your sauna goes into production

        During the review process you'll have opportunities to tweak your design, update products or explore combinations. Thank you.

    LIGHTING

    We offer our most popular lights here. ALL ARE DIMMABLE. Browse the site for more. Let us know if you want to substitute the wall light.

    One Brushed Aluminum Light is ALREADY INCLUDED with this kit or package in our Accessories Bundle

    • Wet Rated Recessed Light / 4" for Sauna or Steam

      Original price was: $209.Current price is: $170.

      • ❯ Application

        ❯ Housing

        Remodel Housing is NOT IC — NOT RATED FOR INSULATION
        Light Housing can NOT touch insulation. It is a FIRE HAZARD!

        Trim Ring

        Trim Ring

        Sorry as of this post (11/1/2024), the manufacturer no longer makes the glass ring option

        Wet Rated Recessed Light for Sauna or Steam (4")
        Wet Rated Recessed Light for Sauna or Steam (4")
        Bronze Ring / Wet Rated Recessed Light
        Bronze Ring / Wet Rated Recessed Light
        Brushed Satin Trim Ring / wet rated Recessed Light
        Brushed Satin Trim Ring / Wet Rate Recessed Light
        Wet rated Recessed Light / Glass Trim
        Wet rated Recessed Light / Glass Trim

    SAUNA ACCESSORIES BUNDLE

    Our Sauna Accessories Bundle completes the traditional sauna experience.

    Regarding vent size: For a 5x6′ sauna, we recommend a 6kW heater (or stronger)

    • SMP Sauna Accessories Bundle

      • Choose only the items you need for your sauna project

        ❯ Foil Vapor Barrier

        Vent Size

        Proper Vents

        Reasons you may want a stronger heater:
        • When adding an all-glass front wall
        • Your sauna is outdoors
        • You want more rock capacity (a feature of some heaters)
        Heaters < 9kW use 4x6″ size vents
        Heaters ≥ 9kW use 6x8″ size vents
        • Intake vents are placed behind or near the heater about 2″ above the floor
        • Exit vents are best placed in the opposite corner about 6″ below the ceiling
        • Small saunas (<4x6′) can use a 1/2″ gap under the door as an intake vent
        Pick only the accessories that best complement your sauna tastes. Enjoy!

        Vent Covers +

        Vent Covers +

        Electives

        Opt Out

        Offset

        Offset

    WINDOWS

    Choose from our most popular windows here or browse our site for more

    • 15x24 Sauna Window

      $257

      • Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Shape

        ❯ Panel #

        Window Panel Number

        In which WALL PANEL should we install your window?

        Refer to your selected sauna plan diagram (below) to get your wall number

        Additionally, feel free to specify additional information in the notes field (Modular Sauna Kit)... E.g., "Place 12x36 window in Panel #3 as high as possible. Move exit vent to adjacent wall if necessary"

        Wall #

        Windows in Wall Number

        In which WALL will you install your window: #1 – 5?

        It's worth mentioning that we are NOT going to deduct T&G cedar planks from your sauna cut list. So you'll have some extra cedar pieces equal to the width x length of your window. We don't do that because your final design may change.

        Of course it's your sauna installation, so you can put the window on any wall that works for you. Still, since we're drafting your sauna plan diagram for your approval, it's best we're all on the same page. Mostly, so that we can share design ideas with you and you build a sauna that works for your space and personal needs.

        Window Orientation

        Window Orientation

        How do you want the window set in the wall panel: vertical OR horizontal?

        Jamb Width

        Jamb Width
        = ± 1/8″

        Glass Type

        Pane Dividers

        Window Pane Divider

        Sometimes called grilles, mullions or muntins. We're just calling it a window pane divider for simplicity.

        ❯ Trim Material

        Both are required in a Modular Sauna Kit

        Trim Material

        Discount

    • 24x24 Sauna Window

      $246

      • Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Shape

        ❯ Panel #

        Window Panel Number

        In which WALL PANEL should we install your window?

        Refer to your selected sauna plan diagram (below) to get your wall number

        Additionally, feel free to specify additional information in the notes field (Modular Sauna Kit)... E.g., "Place 12x36 window in Panel #3 as high as possible. Move exit vent to adjacent wall if necessary"

        Wall #

        Windows in Wall Number

        In which WALL will you install your window: #1 – 5?

        It's worth mentioning that we are NOT going to deduct T&G cedar planks from your sauna cut list. So you'll have some extra cedar pieces equal to the width x length of your window. We don't do that because your final design may change.

        Of course it's your sauna installation, so you can put the window on any wall that works for you. Still, since we're drafting your sauna plan diagram for your approval, it's best we're all on the same page. Mostly, so that we can share design ideas with you and you build a sauna that works for your space and personal needs.

        Window Orientation

        Window Orientation

        How do you want the window set in the wall panel: vertical OR horizontal?

        Jamb Width

        Jamb Width
        = ± 1/8″

        Glass Type

        Pane Dividers

        Window Pane Divider

        Sometimes called grilles, mullions or muntins. We're just calling it a window pane divider for simplicity.

        ❯ Trim Material

        Both are required in a Modular Sauna Kit

        Trim Material

        Discount

    • 12x36 Framed Sauna Window

      $383

      • Application

        Is this Door Part of a Sauna Kit or Materials Package?

        If so, we'll add it to your sauna drawing for you to review later.

        Shape

        ❯ Panel #

        Window Panel Number

        In which WALL PANEL should we install your window?

        Refer to your selected sauna plan diagram (below) to get your wall number

        Additionally, feel free to specify additional information in the notes field (Modular Sauna Kit)... E.g., "Place 12x36 window in Panel #3 as high as possible. Move exit vent to adjacent wall if necessary"

        Wall #

        Windows in Wall Number

        In which WALL will you install your window: #1 – 5?

        It's worth mentioning that we are NOT going to deduct T&G cedar planks from your sauna cut list. So you'll have some extra cedar pieces equal to the width x length of your window. We don't do that because your final design may change.

        Of course it's your sauna installation, so you can put the window on any wall that works for you. Still, since we're drafting your sauna plan diagram for your approval, it's best we're all on the same page. Mostly, so that we can share design ideas with you and you build a sauna that works for your space and personal needs.

        Window Orientation

        Window Orientation

        How do you want the window set in the wall panel: vertical OR horizontal?

        Jamb Width

        Jamb Width
        = ± 1/8″

        Glass Type

        Pane Dividers

        Window Pane Divider

        Sometimes called grilles, mullions or muntins. We're just calling it a window pane divider for simplicity.

        ❯ Trim Material

        Both are required in a Modular Sauna Kit

        Trim Material

        Discount

    • Trim Kit Existing Sauna Window

      • ❯ Wall #

        Windows in Wall Number

        In which WALL will you install your window: #1 – 5?

        It's worth mentioning that we are NOT going to deduct T&G cedar planks from your sauna cut list. So you'll have some extra cedar pieces equal to the width x length of your window. We don't do that because your final design may change.

        Of course it's your sauna installation, so you can put the window on any wall that works for you. Still, since we're drafting your sauna plan diagram for your approval, it's best we're all on the same page. Mostly, so that we can share design ideas with you and you build a sauna that works for your space and personal needs.

        Enter WxH

        Measure the widest part of your window frame and enter WxH (round up to the nearest inch)

        Width

        Measure your window frame's width

        Height

        Measure your window frame's height

        If you need > 96", please choose a longer 1x3″ - S4S Clear Cedar board on our Dimensional lumber page

        Jamb Width
        = ± 1/8″

        Omit Jamb

        Omit Jamb

        You may not need dedicated jamb material for your site condition. In this case, the jamb will fill the area between the window's frame and the front of the cedar T&G (Tongue & Groove). Generally you want to be slightly proud of the T&G by 1/8th or 1/16th of an inch

        Trim Material

        Trim Material

        You may not need dedicated trim material for your existing window. Sometimes there's extra cedar flooring material (if you selected duckboard). Of course, there will be some extra material that would have covered your existing window's area. It's difficult to estimate that figure here until more details become available

  • Ok, Let's Build This!

    Is this my FINAL Sauna Plan? No!

    It's a GENERIC FLOOR PLAN so you can easily review your basic design choices

    We'll draft a FLOOR plan and sometimes an ELEVATION plan and post them to your MyAccount page. There you can add notes, upload your own drawing and once ready, bless it for our production queue.

    Also, see the Post-Sales FAQ (near the top): "I ordered my sauna ... What's next?" to fully understand the work flow, but basically ...

    After your order is processed and we receive a 50% deposit:
    1. We'll draft NEW sauna plan/s for your review
    2. Then review, revise and approve your sauna plan using the MyAccount page
    3. Once we have your full blessing, we create internal Work Orders for your sauna, door, benches, etc.
    4. After it's built, we deliver locally and via third party common carriers who will arrange delivery with you

    NOTES

    Enter any other details. Reference wall numbers and bench letters for best clarity, thx!

    To edit your sauna choices, simply click "Edit Options" button while on the Cart page

    > Make a 50% Deposit

    Start Your Sauna Project!

    How to Pay 50% Up Front

    Convert Your Sauna Order to a Quote

    Make a 50% online deposit on your SAUNA ORDER ONLY. If you convert your order to a quote, we can reset the total to half. Unfortunately, the site does NOT do this automatically

    So CALL 1.800.426.3929 or EMAIL us at:

    info@cedarbrooksauna.com with the subject line: “50% Deposit + Your Order Number”

    To create a quote:

    • Add your sauna to the cart
    • Set your Billing and Ship-To address (to pick-up in our showroom, see below)
    • Agree to the Terms and Conditions
    • Do NOT Enter Your Credit Card!! ✲ If you do, your FULL payment will be processed!
    • Click “Convert Order to a Quote” button on the Check Out Page

    After you’re in our system …

    • Call or email us to adjust your total
    • Make a 50% deposit when ready
    • Our project queue is based on deposit date
    • Quotes expire after 60 days

    SAVE SHIPPING COSTS by picking up your order. USE our address as your SHIPPING ADDRESS:

    Your Name

    c/o Cedarbrook

    21326 WA-9

    Woodinville, WA 98072

    Thank you for your sauna and steam room business!

    > Did You Know, You Can ...

    Convert this Order to a Quote!

    Instructions on How to Convert an Order to a Quote

    Convert to Quote 5

    Easily create a quote when you check out!

    DO NOT ENTER YOUR CREDIT CARD — IT’S NOT REQUIRED TO CREATE A QUOTE! ✲

    To create a quote:

    • Add products to your shopping cart
    • Set your Billing and Ship-To address (to pick-up in our showroom, see below)
    • Agree to the Terms and Conditions
    • Do NOT Enter Your Credit Card!! ✲ If you do, your FULL payment will be processed!
    • Click “Convert Order to a Quote” button on the Check Out Page
    • Our project queue is based on deposit date
    • Quotes expire after 60 days


    SAVE SHIPPING COSTS by picking up your order. USE our address as your SHIPPING ADDRESS:

    Your Name

    c/o Cedarbrook

    21326 WA-9

    Woodinville, WA 98072

    Thank you for your sauna and steam room business!

SKU 5X6SMP Categories , Tags , , , , , Brand:

Wake Up and Smell the Cedar!
Enjoy your 5x6 sauna in about 25 minutes at 160-190°F+

Made with 100% Western Red Cedar! No glues, plywood, pressboard are used anywhere

4x6 Mod Open Front Door

Top T&G Grade Materials

100% Western Red Cedar — Even the frame. No plywood or glues are ever used

Enjoy Steam in the Sauna

Ladle Water — ALL our sauna heaters produce steam when you ladle water over the vulcanite rocks

3 Benches Included

3 Benches / Standard — Optionally: Remove one bench to perfectly center the door

Real Saunas Contain the Good Heat

The Fins call the good heat "Löyly". In Scandinavia, the sauna is considered a sacred space – a 'church of nature'
At the heart of the experience lies löyly, the spirit or steam released by casting water onto heated stones

Sauna Wall Anatomy Exterior Labeled
Exterior View
Sauna Wall Anatomy Interior Labeled
Interior View

How we contain the “Good Heat” / Löyly?

It starts with well-insulated sauna walls: 4″ thick with layers of insulation

  • 1×4″ T&G cedar paneling (11/16″) is the best material to absorb heat
  • Sauna Foil Vapor Barrier (1/64″) provides both reflective and conductive insulation so heat is evenly distributed over the sauna walls and immediately reflected back to the sauna interior
  • Walls are framed with 2×3″ cedar (2½”). Frames are studded 16″ on center
  • Rock wool insulation batting  (mineral-based, not fiberglass) keeps heat from leaking. Note: Barrel saunas have NO INSULATION
  • Tar paper, a water proofing material (1/16″). An indoor sauna, of course does not require that, but it’s worth noting that our indoor modular sauna kits can be relocated outdoors – just add a roof. Our indoor/outdoor kits start exactly the same!
  • Beveled cedar siding (¾”). The tapered exterior siding ensures water drips away from the walls. By the way, this is a similar material to what you find in barrel saunas. And that’s all they use in a barrel sauna to contain the heat.

Sauna Benching Options

Benches can be fixed on legs or loose on ledges

Standard Benching Using Fixed Legs

Fixed Leg Benching / Standard

Bench Legs Support Seats — 2x2″ cedar legs support benching. All fasteners are hidden from touch

Hot Yoga Benches Retracted Position

Hot Yoga Style Ledges / Retracted

Bench Retracts Out of the Way — Enjoy more floor space for hot yoga or exercise

Hot Yoga Benches Normal Position / 6Ft Cedar Sauna Bench

Hot Yoga Style Ledges / Seating

Benches in Seated Position — Shown is a 2 Bench Sauna Layout. This is the easiest to operate. No L-shapes

RADIANT SAUNA HEAT WARMS YOUR BODY TO THE BONES!

Our 5×6′ Sauna Materials Package comes complete!

A TRUE BANYA EXPERIENCE — If you’re looking for the true Banya sauna experience, then you’ll enjoy this complete indoor sauna room! Our 5×6′ Sauna Materials Package comes with door, 6kW heater, rocks, 3 benches and accessories for 3 sauna bathers.

HEATER — The 6kW sauna heater with built-in, digital or WiFi-enabled controls and vulcanite rocks. (Built-in controls are the simplest to wire). Substitute any heater or upgrade to wall-mounted digital controls or WiFi-enabled controls.

CONTAIN THE HEAT — Enjoy 170°F – 195°F in about 25 minutes. Our Modular Sauna Kits are the most insulated indoor sauna room kits available. The prebuilt panels ( wall + ceiling) are 4″ thick, so your sauna gets hotter faster and stays hotter longer. Thin-walled barrel saunas produced today have forgotten this simple principle: Contain the heat!

3 PRE-BUILT SAUNA BENCHES — Carpenters say they’re beauts! Made from 100% clear western red cedar. No knots! The 3 pre-built sauna benches have smooth 2×2 tops and supported by 2×2 cedar legs. All fasteners are hidden from touch. Enjoy traditional fixed legs or optionally hot yoga style ledges – benches flip up or slide away creating standing space to exercise.

DOOR IS PRE-INSTALLED — Our short Rail and Stile sauna door with 16×55″ window glass comes installed in the front wall panel. The large glass adds extra light or a view.

  • Standard: Our SHORT door framed at 24×72″ / fits the 6′4″ ceiling height
  • Optional: Our TALL door framed at 24×76″ / fits 6′8″+ ceiling height – raise by 4 or 8″
  • Substitute another door type: Framed, insulated and clad door with a small windows, solid core OR an all-glass sauna door

SAUNA ACCESSORIES LIST — The sauna accessories bundle includes: heater guard rail, bucket & liner, wooden ladle, sauna wall light, 5″ chrome thermometer, eucalyptus fragrance (100ml) and cedar headrest. The 2 cedar sliders and 2 cedar grill covers ensure proper airflow. So you breath better and easily adjust your perfect temperature.

HEALTH BENEFITS — Enjoy a profuse sweat and a healthier lifestyle through regular sauna use. Soothe tired muscles and enjoy a peaceful retreat to unwind and improve your overall well-being.

RELAXATION — Relaxing mind and body from today’s stresses in a small piece of heaven. The heat, the cedar and soft lighting contribute to best soothe our one good nerve. Everything to create a great sauna experience and support a healthy lifestyle. Add your favorite music and enjoy your well-being with a deep sweat!

Description

Our 5 x 6 sauna room materials package is the cedar construction kit you'll want to line your studs

A cedar sauna not only looks beautiful but also offers incredible health benefits

Our 5 x 6 sauna room (default options):

  • Made of 1x4″ tongue & groove paneling is 100% clear Western Red Cedar plus a foil sauna vapor barrier
  • Fits 3+ sauna bathers on 3 sauna benches
  • Height: 7'0" / Volume: 210 cu. ft.

Whether you're looking to relax and unwind after a long day or boost your overall health and wellness, our sauna materials package provides the ideal sweat. With temperatures ranging from 70-100°C+ (158-212°F) and low humidity levels, you can enjoy a deep sweat session that helps to eliminate toxins and improve circulation.

Easy to assemble and maintain, our cedar sauna construction kit is perfect for those looking to bring the spa experience home. Imagine enjoying a hot sauna session from the comfort of your home, spa or use this materials package to convert a building outside into your outdoor sauna oasis. It's the ultimate way to destress, rejuvenate, and improve your overall health.

With easy-to-follow video assembly instructions, our sauna construction kit is a relatively easy carpentry project whether you're a seasoned carpenter or a weekend DIYer, you'll be able to put together your own personal sauna in a short time.

Additional information

Weight 327 lbs
Dimensions 74 × 18 × 12 in

Sauna Materials Package Specifications

Below are details, dimensions and standard components included with this Sauna Materials Package

Feature Specs / Dimensions Description
Brand Cedarbrook Sauna + Steam Built in Washington state
Material Lining: 1×3″ T&G clear Western Red cedar paneling. T&G = Tongue and Groove Light carpentry required
Use 18g brad nailer
# Persons 3+ sauna bathers Sharing 3 benches max
Max Coverage 5x6x7′ (ceiling) = 170 Total Sq Ft coverage Add 15/8″ to W and L (absolute maximum) Note: We provide one extra board per wall Coverage calculation = 170 sq ft:
2 x (W + L) x H + W x L – Door Area
W = 5′
L = 6′
H = 7'0"
Less Door = 2 x 7'0"
Internal Dimension IF 5′0″W x 6′0″L x 7′0″H Volume = 210 cu. ft.
Ceiling Height Our standard is 7 ft Options to raise or lower ceiling in 6″ increments up to: 7′6″, 8′0″ or 8′6″ (Trumpkin height)
Sauna Door Rail & Stile Door + 16×67″ Clear Glass
Residential: 24×82″ Rough Opening (standard)
22×80½″ Actual door		 Pre-hung in a custom jamb
Tempered double glass
Self-closing hinge
Incl. 1 Cedar door handle
Sauna Heater Req: 6 kW heater / 240V / 30 amp breaker / 10 gauge wire Rocks Included
3 Benches Seat 4″ thick
Seat height low/high: 20″ / 40″
Standard seat width 18″ and 22″
3 Benches = 15.5 Total Linear Feet Max		 Seats made of clear Western Red Cedar
Seat 4″ thick
Fixed legs are pre-built
NO VISIBLE fasteners or knots
Screw to walls and each other
Option: Hot Yoga Style Ledges (Free span / No Legs)
Insulation Staple sauna foil vapor barrier to studs. If you have drywall, no need to remove it if your walls are insulated Insulate with formaldehyde-free insulation batting between studs
Interior Trim 1×1″ corners, 1×3″ door, 1×2″ for ceiling, base and seams Light carpentry required
Use 18g brad nailer
Exterior Trim 2×2″ corners, 1×6″ top fascia, 1×3″ bottom fascia, 1×3″ door, 1×2″ vertical seams Light carpentry required
Use 18g brad nailer
Accessories Bundle Heater Guard Rail
Bucket & Liner
Wooden LadleSauna Wall Light
5″ Chrome Thermometer		 Cedar Headrest
2 Cedar Sliders
2 Cedar Grill Covers
Eucalyptus Fragrance (100mL)
Venting Air Flow thru 4×6″ vents if heater ≤ 8kW OR 6×8″ vents if heater ≥ 9kW Proper venting ensures you and the sauna heater appliance breaths properly
Duckboard Flooring Optional
• None (default)
• Walking Area Only OR
• Entire 5x6 floor		 Assembly required. Use 1″ crown stapler
Always install duckboard flooring in segments AFTER INSTALLING benching + fixed legs supports
It’s meant to be removable
Windows Optional: Assorted sizes offered If you have an existing window in your walls, check your manfacturer’s specs if heat-tempered
