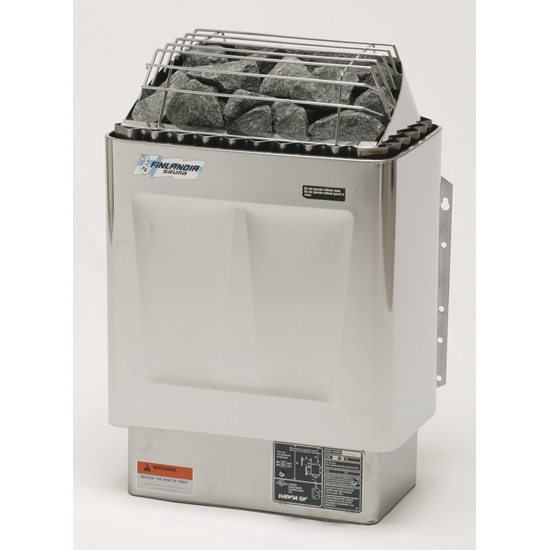

Finlandia FIN 80S Sauna Heater / Stainless

Finlandia FIN-S-Series Electric Sauna Heater | External Control Option + Rocks
FIN stainless ext
Polar HMR Series Electric Sauna Heater | Built-in Controls with Rocks | Guard Rail
Xenio CX-30C WiFi / Xenio CX-45 WiFi / Xenio CX-170 WiFi Sauna External Control
F-2T installed
4x6 Mod Open Front Door
Wall Mounted Sauna Heater Guide Marks for Vent

Heater Details

Brand
Finlandia‌
Model‌
FIN 80S‌
Power
electric‌
Place
wall mount‌
Output
8 kW‌
Load
33.3 amps‌
Breaker
40 amps‌
Wire
8 gauge‌
Min
250 cu. ft.‌
Max
425 cu. ft.‌
Rocks
45 lbs.‌
Unit
35 lbs.‌
Heater Unit Dimensions
Width
16″‌
Depth
11″‌
Height
24″‌
Compare More 8kW+ Heaters

Finlandia FIN 80S Sauna Heater / Stainless

Finlandia FIN 80S | Wall-mounted 8kW sauna heater with external controls for saunas 250 – 425 cu. ft.

Finlandia 80S sauna heater uses only low resistance, stainless steel heating elements with a 45 lb. rock capacity

FIN 80S SAUNA HEATER FEATURES:

  • Wall-mounted 8kW electric sauna heater (See: built-in controls model)
  • Controls options: 1-8 hr delay / 60 min. Timer / Thermostat
  • Mechanical analog controls mounted outside the sauna
  • Includes 45 lbs of Vulcanite sauna rocks

Enjoy a traditional Finnish steamy sauna experience

Hot Steam on Sauna Rocks Icon UL-approved to ladle water on the sauna rocks for blasts of steam!
Water may drip from bottom – it's not a hazard


Polar HNVR Series sauna heaters are a very reliable model. The FIN 80S offers a good quality wall-mounted sauna heater with external. controls. The outer casing and rock container are made of an aluminum-zinc alloy; the cover is cast aluminum and the grill is stainless steel, plus a baked enamel exterior. Just a rock solid sauna heater for good home sauna space.

Original price was: $966.Current price is: $940.

  • Volts / Phase

    Omit Control

    This Heater Requires Controls
    We only offer this option IF you've already been shipped controls OR you are just replacing the heater. Please confirm above that you're omitting the control

    Control Options

    Click the control below to read the highlights

    $935

    $1240

    $770

    $846

    $923

    $795

    $795

    $413

    $375

    $308

    F-2 Control requires additional items: Contactor Box (depends on electrical phase) + 24 Hr Timer (Analog or Digital) as per below

    ❯ Control Highlights

    • Harvia Fenix FX30 Sauna Heater Control

      $935
        Harvia Fenix FX30 Sauna Heater Control
        • Operation: Wi-Fi-enabled and digital control panel
        • Installation: Install INSIDE or OUTSIDE the sauna
        • Capacity: Controls heaters up to 7 kW (at 240V) or up to 10.5 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to approx. 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time
        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

      • * LIFETIME LICENSE IS ONLY $99 *

        Note to Customer: Activating the MyHarvia app on your phone requires a $99 lifetime license fee (covers the whole household). Charged when you connect.

        ❯ License Agreement

        Check the box to read FULL details

        License Details & Features

        The $99 fee associated with the Harvia Fenix FX series sauna control unit is for a one-time, lifetime software upgrade license to unlock the advanced "Control" tier features in the MyHarvia 2 app.
        • Cost: One-time $99 lifetime license fee.
        • Coverage: Covers the entire household with unlimited user invites under one license.
        • Core Tier (Free): Provides local functionality, basic status tracking, and basic control panel operations.
        • Control Tier ($99): Unlocks full remote access to start, stop, and schedule the sauna from anywhere.
        • Trial: New Fenix systems include a 3-month free trial of the Control tier features.
        • Purchase: The license is purchased directly inside the mobile app store. No extra hardware is required.

    ❯ Control Highlights

    • Harvia Fenix FX30C Sauna Heater Control

      $1,420
        Harvia Fenix FX30 Sauna Heater Control
        • Operation: Wi-Fi-enabled and digital control panel
        • Installation: Install INSIDE or OUTSIDE the sauna
        • Capacity: Controls heaters up to 7 kW (at 240V) or up to 10.5 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to approx. 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time
        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

    ❯ Control Highlights

    • Harvia Fenix FX45 Sauna Heater Control

      $1,240
        Harvia Fenix FX30 Sauna Heater Control

        NOTE: When connecting the MyHarvia app to the FX45 controller for the first time, you will billed $99 licensing fee to Harvia (one-time charge)

        • Operation: Wi-Fi-enabled and digital control
        • Installation: Install inside or outside the sauna
        • Capacity: Controls heaters up to 11 kW (at 240V) or up to 15 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time

        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

      • * LIFETIME LICENSE IS ONLY $99 *

        Note to Customer: Activating the MyHarvia app on your phone requires a $99 lifetime license fee (covers the whole household). Charged when you connect.

        ❯ License Agreement

        Check the box to read FULL details

        License Details & Features

        The $99 fee associated with the Harvia Fenix FX series sauna control unit is for a one-time, lifetime software upgrade license to unlock the advanced "Control" tier features in the MyHarvia 2 app.
        • Cost: One-time $99 lifetime license fee.
        • Coverage: Covers the entire household with unlimited user invites under one license.
        • Core Tier (Free): Provides local functionality, basic status tracking, and basic control panel operations.
        • Control Tier ($99): Unlocks full remote access to start, stop, and schedule the sauna from anywhere.
        • Trial: New Fenix systems include a 3-month free trial of the Control tier features.
        • Purchase: The license is purchased directly inside the mobile app store. No extra hardware is required.

    ❯ Control Highlights

    • Xenio CX-30 WiFi App / Digital Control + Contactor

      $770
        harvia xenio cx30 sauna control panel The Harvia Xenio CX30 is a modern, digital touchscreen sauna control unit designed to manage sauna heaters up to 10.5 kW (or up to 11 kW depending on electrical configuration). Available in both standard and Wi-Fi-enabled models, it offers real-time adjustments and can be installed inside or outside the sauna room

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-45 WiFi App + Digital Control + Contactor

      $923
        harvia xenio cx30 sauna control panel
        • Control sauna temperature, humidity, lighting and ventilation
        • Advanced functions make it easier to use the sauna daily and give you many new options, e.g., select the time when you want to go in the sauna
        • IF WiFi-enabled, you'll always see your sauna’s status on your phone!
        • Delay setting:  10 min – 12 hrs / Timer has 60 min run time then expires
        • Operating temperature range 104-194°F / Displays °F or °C

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-30C Virta Combi Only | Digital Control + Contactor w/ WiFi App

      Original price was: $1,208.Current price is: $846.

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-170 WiFi App+ Digital Control + Contactor

      $795

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    ❯ Control Highlights

    • Finlandia F-1T Sauna Heater External Controls

      Original price was: $590.Current price is: $413.

        F-1T sauna heater controls

        • Simple external ANALOG sauna heater controller with a 60 minute timer
        • Wall Mounted
        • Heat indicator light
        • Thermostat Heat Control
        • On/Off switch for the interior light (not dimmable)


        For use with FIN-30, FIN-45 and FIN-60 single phase heaters. No additional relay power is required

    ❯ Control Highlights

    • Finlandia F-2T Sauna Heater External Controls

      Original price was: $536.Current price is: $375.
        Finlandia F-2T sauna heater controls

        The Finlandia F-2T analog control is ideal for larger sauna heaters (8kW+), featuring a 60-minute timer, thermostat, light switch, and indicator light. It is specifically designed for FIN and Club heater models, requiring a separate FX contactor for operation.

        Includes a 60-minute timer, adjustable thermostat, and built-in light switch (ON/OFF only, not a dimmer). Flush-mounts on the wall outside the sauna room.

    ❯ Control Highlights

    • Finlandia F-2 Sauna Heater External Control

      Original price was: $392.Current price is: $308.
        NOTE:  The F-2 control can only be used when an attendant is on duty during hours of operation. Also requires the FX402 contactor power unit.
        F-2 Heater Controls Panels > Finlandia External Controls > FIN-F-2T

        For use with a separate 24 hour time clock in commercial settings when the Sauna is to be on for an extended time

        • Simple external control with a on/off switch for the heater (24 Hr timer required and included)
        • Thermostat
        • On/off switch for the interior light

        F-2 control does NOT include a 60 minute timer. Use the 24HTC with the F-2 wall control and proper contactor in commercial settings where the Sauna will be on all day and shut off at night.  NOTE:  An attendant must be on duty during hours of operation.

    ❯ RELAY BOX REQ w/ F-2T and 1 Phase

    • Finlandia Contactor FX402

      Original price was: $275.Current price is: $197.
        Finlandia FX402 contactor power relay box

        Contactor FX402 is a REQUIRED ITEM for use with SINGLE PHASE sauna heaters with the F-2 or F-2T Controls

        Finlandia FX402 CONTACTOR is the dedicated power-switching module that lets these higher-output sauna heaters operate safely under the control of an F-2T panel. Acting as a heavy-duty relay, the FX402 takes on the full 240V heater load so the wall control can work at low stress while still delivering reliable on/off and timed operation. Its robust contact set is engineered for frequent cycling in warm, humid equipment spaces, helping prevent arcing and premature wear that could lead to nuisance trips or failures.

        Works With:

        • Finlandia Sauna Heaters: 3kW, 4.5kW, 6kW and 8kW
        • Harvia Cilindro Sauna Heaters: 6kW, 8kW
        • Harvia Virta & Combi Sauna Heaters: 6kW, 8kW
        • Club Heaters: 10kW, 12kW, 15kW

    ❯ RELAY BOX REQ w/ F-2T and 3 Phase

    • Finlandia FX404 Contactor Power Relay Box

      Original price was: $338.Current price is: $237.
        Finlandia FX402 contactor power relay box

        REQUIRED ITEM for use with SINGLE PHASE sauna heaters 9kW and above and the F-2T Controls

        Finlandia FX404 CONTACTOR is engineered to handle the substantial load of 9kW and larger CLUB, HPC, and HL models, this contactor isolates heavy current from the wall control, reducing wear on switches and electronics while providing clean, reliable on/off operation. Its robust construction is designed for the elevated temperatures and humidity typical of sauna equipment spaces, helping prevent arcing, overheating, and premature failure

    ❯ RELAY BOX REQUIRED w/ F-2T or F-2 Controls and 3 Phase

    • Finlandia FX303 Relay Contactor Box

      Original price was: $275.Current price is: $197.
        FX404 Cover / Contactor Relay Box

        Contactor for FIN Series 3-phase heaters with F-2 or F-2T Controls

        The Finlandia FX303 Contactor is designed for use with FIN Heaters at 208V/3PH with F-2T and F-2 Controls.

        Model: FX303 / SKU: FX303 For use with all Finlandia FIN 3kW, 4.5kW, 6kW (208V / 3-phase) Heater. Models: FIN-45-3, FIN-60-3, FIN-80-3 heaters and F-2T Control NOTE: A 3-phase site requires this FX303 Relay Contactor Box

    ❯ RELAY BOX REQ w/ F-2T and 3 Phase

    • Finlandia FX503 Relay Contactor Box

      Original price was: $250.Current price is: $195.
        FX404 Cover / Contactor Relay Box
        • The Finlandia FX503 Relay Contactor Box is an essential external power unit engineered to manage high electrical loads explicitly for 208V, 3-phase electrical setups, over 8kW (Club 10, 12, 15 models)
        • The FX503 contactor box must be paired with compatible Finlandia/Harvia components to operate correctly. Required when operating the above heaters with traditional analog F-2T (with a 60-minute timer) or F-2 (simple on/off) wall-mounted control panels.
        • Measuring 6" W x 8" H x 4" D. It can be mounted anywhere outside the sauna room, using either surface or flush mounting.

    Choose Your Type

    ❯ Timer

    • 24 Hour Sauna Timer Analog 24HTC-T101

      $190

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with FIN model heaters using the F-2 control and appropriate FX contactor

        Analog 24 Hour Time Clock

        • The Finlandia 24HTC-T101 is a versatile 24-hour analog time clock programmed for DAILY ON/OFF Times ONLY. See the 24 Hour Sauna Timer Digital 24H7D options IF you need 7 day programming.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Analog 24HTC-T104

      $190
        Analog 24 Hour Time Clock

        Finlandia 24HTC-T104 is a 24-Hour time clock for use with FIN model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T104 is a versatile 24-hour analog time clock programmed for DAILY ON/OFF Times ONLY. See the 24 Hour Sauna Timer Digital 24H7D options IF you need 7 day programming.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all FIN series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Digital 24H7D-1705

      $391

        24 Hour Sauna Timer

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with CLUB model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T101 is a versatile 24-hour, 7-day digital time clock designed to give you complete control over your sauna schedule.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Digital 24H7D-1725

      $435

        24 Hour Sauna Timer

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with CLUB model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T101 is a versatile 24-hour, 7-day digital time clock designed to give you complete control over your sauna schedule.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters

  • Click on the image to select the guard rail

    The F-2 Controls is a combination of: Control, a Contactor box and a 24Hr Timer (as per below)

    • Sauna Control Junction Box | Rough Out

      $100

      Sauna Control Junction Box for wall-mounted sauna heater controls

      Ready-to-install junction box for external sauna heater controls.  Sometimes called Rough Out / Rough In Box

      Makes sauna heater control installation easier

      Required for our Modular DIY Sauna Kits! IF you chose one of the controllers below

      Sauna Control Junction Box INCLUDES

      • Cedar housing box / A perfect fit for F-1T, F-2, F-2T and SC-9 series control units
        Rough out box fits controllers sized: 3¾" W x 9¼" H (sometimes called a Rough-in Box)
      • Pre-drilled holes
      • 10 feet of conduit / Deselect conduit if NOT needed

      Your electrician will install power and sensor wires

      • CONDUIT

        If you don't need conduit, deselect

    Spirit Guard Rail

    Guard Rail

    Select the button to read more about the Access Cover

    • Harvia Spirit Safety Rail Guard SP60/90 black

      $267

        Harvia Spirit Safety Rail

        • Provides a protective barrier around the heater without occupying valuable floor space
        • Mount guard rail at your preferred height
        • Defines the hot zone around the heater
        • Stylish Birch surface delivers a comfortable touch
        • Multiple railings are possible

    Control Cover

    • Access Control Rain Cover

      $78

        access control rain cover dims

        access control rain cover examplesPlastic Rainproof Transparent Shield Weatherproof Shell

        • Durable PC Material: Made of high-quality PC plastic material, this product has excellent durability and impact resistance, effectively protecting your sauna control panel
        • Easy access to your control panel from underneath
        • Waterproof Design: Specifically designed to be rainproof, this cover can effectively prevent rainwater hitting your sauna control panel
        • Easy to install, use a screwdriver to attach the rain cover to the wall with screws

        Product Dimensions ‎7.1 x 5.9 x 4.7 inches

      • * PARTS RETURN POLICY *

        All parts purchased have a 30 day warranty and return window.
        Additionally, there will be a 20% restocking fee on all returns.

        ❯ Policy Agreement

    • lbs

    Include Rocks?

    Rocks Are Included

    All our heaters include the rocks for FREE, but if you already have rocks or we've sent them to you... then there's NO need to pay for the shipping.

    If NO ROCKS are needed, then simply uncheck the box below or remove them from your shopping cart.

    Includes One Box of Rocks (45 Lbs)
    • Vulcanite Sauna Rocks

      Sauna Rocks 45# Box Authentic Finnish Vulcanite

  • Guard Rail is Optional with our Sauna Materials Packages

    Note: Our standard guard rail for a wall-mounted heaters (45 Lbs rock capacity) is recommended AND included when ordering our Sauna Materials Packages. Or you can UN-check the guard rail in Step 4 > Accessories tab and save if opting for a larger heater.

    Guard Rail Included with Our Modular Sauna Kits

    Note: Our standard guard rail for a wall-mounted heater is automatically included with our Modular Sauna Kits

    Add A Guard Rail?

    Guard Rail Diagram Guard Rail Diagram
SKU FIN-80S Categories , , Tags , , , , , , , Brand:

Description

FIN 80S Sauna Heater Features:

  • 240V/1PH Operation with CX170 control or F1T control
  • 208V/3PH Operation with CX170 control or F2T control with FX303 contactor
  • 24-Hour Operation with CX170 control and 24H7D time clock or F2T control with FX303 contactor and 24H7D time clock
  • Wall-mounted traditional hot rock heater
  • Stainless steel elements
  • Requires wall-mounted time/temperature control
  • Requires contactor with F-2 and F-2T controls
  • Available in 240V/1PH and 208V/3PH operation
  • Stainless steel construction
  • Optional Stainless Steel exterior
  • Industrial grade, serviceable heating elements
  • Rock capacity: 45 lbs of Vulcanite sauna rocks
  • Direct rock-to-heating element contact
  • 24“H x 16“W x 11“D
  • Fits sauna rooms from 250 to 425 cu. ft.
  • Safety signs included

Full Description:

The Finlandia FIN 80S electric sauna heater is designed to heat from to 250 to 425 cu. ft.

The wall-mounted FIN 80S 8kw sauna heater generates a satisfying, penetrating heat. The unit features industrial-grade, stainless-steel heating elements and corrosion-resistant stainless components. Its large rock capacity provides optimal heat storage.

The FIN 80S is designed so that rocks are in direct contact with the heating elements, resulting in a more even and consistent heat. The sauna heating unit features triple-wall construction which provides lower surface temperatures and added safety.

When you buy a sauna, quality and value are important. In the rich tradition of authentic Finnish saunas, the FIN 80S is engineered for years of safe and reliable operation. Finlandia sauna heaters are made by Harvia and imported from Finland.

The FIN 80S electric sauna stove provides a traditional sauna experience by blanketing the room with an intense heat. The unit is perfect for any home sauna kit.

The Finlandia FIN 80S heater is available in 240V, single-phase (1PH) and 208V, three-phase (3PH) configurations. The sauna unit may be ordered with the standard red enamel finish or the optional stainless-steel exterior (FIN 80SS).

The FIN 80S sauna heater requires a control for operation, sold separately. For 240V/1PH operation, the CX170 control or F1T control can be used. For 208V/3PH operation, the CX170 control or FT2 control with FX303 contactor can be used. For commercial applications, the FIN 80S can be run 24 hours a day with the CX170 control and 24H7D time clock, or the F2 control with its respective contactor and 24H7D time clock.

The FIN 80S carries a limited lifetime warranty with the manufacturer (NOT Cedarbrook Sauna + Steam) and is fully serviceable. All Finlandia and Harvia sauna heaters are UL and ETL listed and tested for your safety.

pdf document icon

Finlandia FIN Sauna Heater Operation & Wiring Installation Manual

Covers: F-1T Wall Control wiring diagram
For Models: FIN-30, FIN-45, FIN-60 / KIP-30-W1, KIP-30-W1, KIP-30-W1

Covers: F-2T Wall Control + FX402 Contactor box wiring diagram
For Models: FIN-80 / KIP-80-W1 240v, 1ph heaters

Covers: F-2T Wall Control + FX303 Contactor box wiring diagram
For Models: FIN-80-3 / KIP-80-W3 208v, 3ph heaters

Covers: F-2 Wall Control + FX402 or FX303 Contactor box & 24 hour time clock wiring
For Models: FIN & KIP-W model heaters in commercial multi-hour setting

pdf document icon

  • How should I mount my sauna heater on the wall?
    Mount My Sauna Heater 23" Off the Floor
    Mount Your Sauna Heater 23″ Off the Floor

    Mount Sauna Heater 23″ Off the Floor

    Mount my sauna heater instructions

    ALLOWS CHECK YOUR SAUNA INSTALLATION INSTRUCTIONS FOR MOUNTING HEIGHT

    At right is an exposed sauna wall showing blocking to mount the sauna heater and the intake vent. This is our method for most wall-mounted sauna heaters with 50 lbs of rocks

    • Add blocking between your studs, so it’s ready for your installer or electrician to hang the sauna heater on the wall.
      NOTE: IF your sauna is a DROP 4.5, 7.5o 9 OR a Spirit 6 or 8 weighing about 150 lbs., consider doubling the studs!
    • Below the heater blocking is the intake vent opening. It sits right on the bottom plate of the wall. So very close to your hard floor. Generally, we make a 4×6″ vent opening IF the heater is 8kW or less, and 6×8″ vent opening if 9kW or bigger
    • The intake vent does NOT need to be under the heater. It can be within 3 feet. In small saunas ≤ 4×6, you can also vent under the door (ie., the gap)

    Later the sauna wall will be filled with R-13 insulation — excepting for the vent opening! Air will flow through the intake vent and into the sauna. The exit vent allows some air to exit the sauna. We cover the exterior of the vent with a grill and the intake with a sliding door.

    Sauna heater installation / Hanging a wall-mounted sauna heater

    Set your heater’s top mounting nuts at 23 inches off the hard floor (tile, cement, linoleum, etc.). This should leave between 6 ½–8″ from the hard floor to the bottom of the heater’s shroud.

Finlandia 8kW Sauna Heater Element | 2670W Element for 8KW Heater (240V)

Model: FH79-240V / SKU: FH79-240V

or ZSL-316 2670W Element for 8kW Heater (for 208v)

We recommend replacing all 3 heating elements at the same time

Replacement heating element 2670W for the following 8KW sauna heaters:

  • KV-80S = 3 elements
  • FLB-80 = 3 elements
  • FLB-80S = 3 elements
  • FIN-80 = 3 elements
  • FIN-80S = 3 elements

Additional information

Weight 35 lbs
Dimensions 28 × 15 × 20 in

Related products
