Harvia Cilindro 9 Sauna Heater (HPC)

Harvia Cilindro 11 Electric Sauna Heater
Harvia Cilindro Series Electric Sauna Heater
Cilindro sauna heater, relay box and control
all glass sauna wall + cilindro sauna heater
showcase lighted sauna benches cilindro marshall gill install

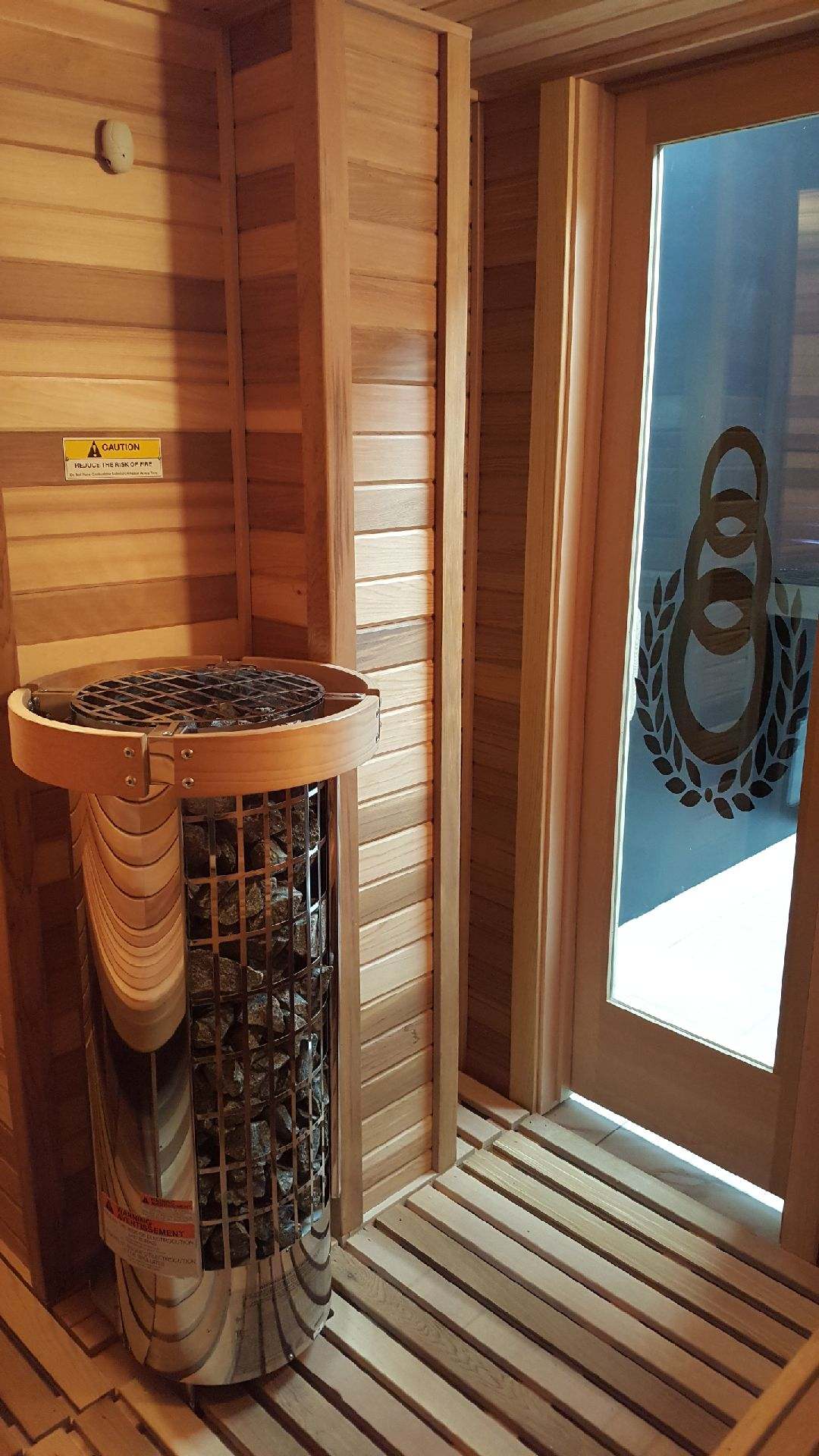

Cilindro Guard Rail Ring

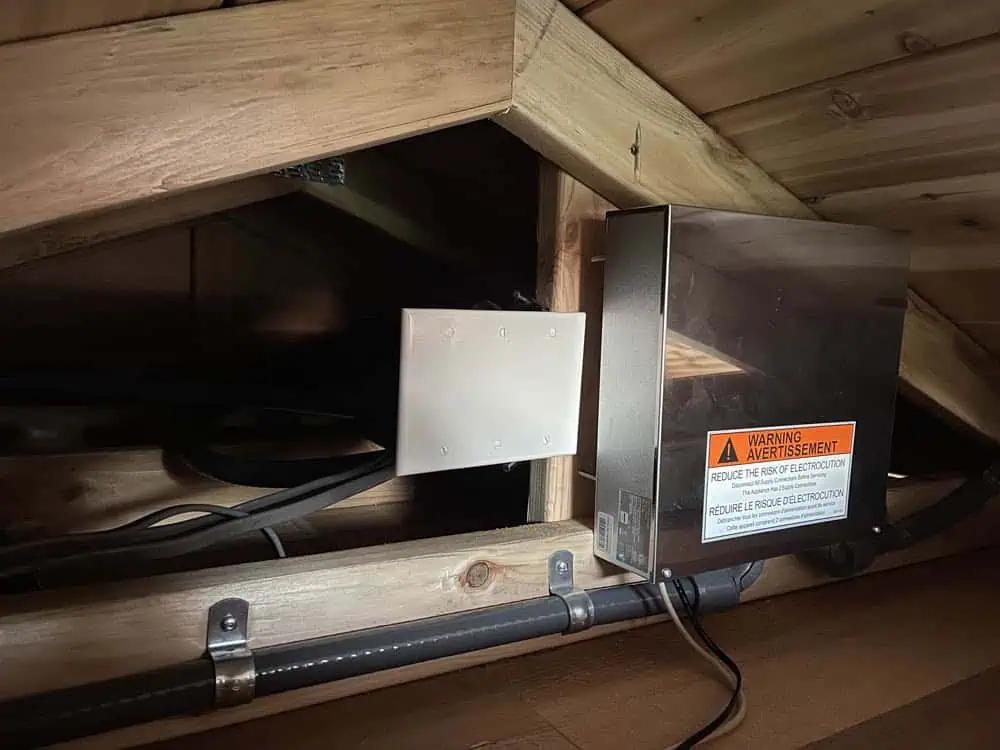

Cilindro Relay box in roof cavity

Heater Details

Brand
Harvia‌
Model‌
Cilindro 9‌
Power
electric‌
Place
freestanding‌
Output
9 kW‌
Load
37.5 amps‌
Breaker
50 amps‌
Wire
6 gauge‌
Min
282 cu. ft.‌
Max
494 cu. ft.‌
Rocks
180 lbs.‌
Unit
40 lbs.‌
Heater Unit Dimensions
Width
14″‌
Depth
13″‌
Height
40″‌
Compare More 9kW+ Heaters

Harvia Cilindro 9 Sauna Heater (HPC)

Cilindro 9 | A freestanding 9kW sauna heater for saunas 282 – 494 cu. ft. with external or WiFi-enable control options

Harvia Cilindro 9 sauna heater holds a large volume of sauna stones and delivers a deep warmth your bones feel!

Cilindro 9 sauna heater produces endless blasts of steam. The rocks are in direct contact with the red hot elements! Great for mid-sized residential saunas. Side wall or corner of room install. Choose analog or digital controls

The 180 lb. stone capacity keeps your sauna room hotter longer. Great if you like long breaks to rehydrate or rest between sauna sessions.

Cilindro 9 SAUNA HEATER FEATURES / HPC Model:

  • Stainless steel housing and elements
  • Direct rock-to-heating element contact
  • Industrial grade, serviceable heating elements
  • Includes 180 lbs of Vulcanite sauna rocks

CONTROL OPTIONS:

  • Xenio digital controls: Set your conditions perfectly
  • F-2T analog controller + Power relay:  60 minute running time
  • F-2 analog controller + Power relay:  ON / OFF  ONLY — Requires the 24 timer

NOTE: Xenio series has a power box relay that should NOT freeze

Cilindro 9 sauna heater and 200 lbs of rocks must be shipped on a pallet via common carrier freight.

Enjoy a traditional Finnish steamy sauna experience

Hot Steam on Sauna Rocks Icon UL-approved to ladle water on the sauna rocks for endless blasts of steam!

$1,295

  • Volts / Phase

    Omit Control

    This Heater Requires Controls
    We only offer this option IF you've already been shipped controls OR you are just replacing the heater. Please confirm above that you're omitting the control

    Control Options

    Click the control below to read the highlights

    $935

    $1240

    $770

    $846

    $923

    $795

    $795

    $413

    $375

    $308

    F-2 Control requires additional items: Contactor Box (depends on electrical phase) + 24 Hr Timer (Analog or Digital) as per below

    ❯ Control Highlights

    • Harvia Fenix FX30 Sauna Heater Control

      $935
        Harvia Fenix FX30 Sauna Heater Control
        • Operation: Wi-Fi-enabled and digital control panel
        • Installation: Install INSIDE or OUTSIDE the sauna
        • Capacity: Controls heaters up to 7 kW (at 240V) or up to 10.5 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to approx. 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time
        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

      • * LIFETIME LICENSE IS ONLY $99 *

        Note to Customer: Activating the MyHarvia app on your phone requires a $99 lifetime license fee (covers the whole household). Charged when you connect.

        ❯ License Agreement

        Check the box to read FULL details

        License Details & Features

        The $99 fee associated with the Harvia Fenix FX series sauna control unit is for a one-time, lifetime software upgrade license to unlock the advanced "Control" tier features in the MyHarvia 2 app.
        • Cost: One-time $99 lifetime license fee.
        • Coverage: Covers the entire household with unlimited user invites under one license.
        • Core Tier (Free): Provides local functionality, basic status tracking, and basic control panel operations.
        • Control Tier ($99): Unlocks full remote access to start, stop, and schedule the sauna from anywhere.
        • Trial: New Fenix systems include a 3-month free trial of the Control tier features.
        • Purchase: The license is purchased directly inside the mobile app store. No extra hardware is required.

    ❯ Control Highlights

    • Harvia Fenix FX30C Sauna Heater Control

      $1,420
        Harvia Fenix FX30 Sauna Heater Control
        • Operation: Wi-Fi-enabled and digital control panel
        • Installation: Install INSIDE or OUTSIDE the sauna
        • Capacity: Controls heaters up to 7 kW (at 240V) or up to 10.5 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to approx. 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time
        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

    ❯ Control Highlights

    • Harvia Fenix FX45 Sauna Heater Control

      $1,240
        Harvia Fenix FX30 Sauna Heater Control

        NOTE: When connecting the MyHarvia app to the FX45 controller for the first time, you will billed $99 licensing fee to Harvia (one-time charge)

        • Operation: Wi-Fi-enabled and digital control
        • Installation: Install inside or outside the sauna
        • Capacity: Controls heaters up to 11 kW (at 240V) or up to 15 kW (at 208V)
        • Glass Touchscreen: Features a premium, high-gloss 4.3" responsive digital display
        • Heat Resistant: Resists intense heat and high moisture levels (up to 36")
        • Easy to Read: Clearly displays active temperatures, targets and remaining session time

        Temperature Range: Operates within 104–194°F (40–90°C) Specifications: Dimensions are roughly 3.4″W x 1″D x 4.4″H Warranty: Limited 1-year warranty for both residential and commercial use

      • * LIFETIME LICENSE IS ONLY $99 *

        Note to Customer: Activating the MyHarvia app on your phone requires a $99 lifetime license fee (covers the whole household). Charged when you connect.

        ❯ License Agreement

        Check the box to read FULL details

        License Details & Features

        The $99 fee associated with the Harvia Fenix FX series sauna control unit is for a one-time, lifetime software upgrade license to unlock the advanced "Control" tier features in the MyHarvia 2 app.
        • Cost: One-time $99 lifetime license fee.
        • Coverage: Covers the entire household with unlimited user invites under one license.
        • Core Tier (Free): Provides local functionality, basic status tracking, and basic control panel operations.
        • Control Tier ($99): Unlocks full remote access to start, stop, and schedule the sauna from anywhere.
        • Trial: New Fenix systems include a 3-month free trial of the Control tier features.
        • Purchase: The license is purchased directly inside the mobile app store. No extra hardware is required.

    ❯ Control Highlights

    • Xenio CX-30 WiFi App / Digital Control + Contactor

      $770
        harvia xenio cx30 sauna control panel The Harvia Xenio CX30 is a modern, digital touchscreen sauna control unit designed to manage sauna heaters up to 10.5 kW (or up to 11 kW depending on electrical configuration). Available in both standard and Wi-Fi-enabled models, it offers real-time adjustments and can be installed inside or outside the sauna room

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-45 WiFi App + Digital Control + Contactor

      $923
        harvia xenio cx30 sauna control panel
        • Control sauna temperature, humidity, lighting and ventilation
        • Advanced functions make it easier to use the sauna daily and give you many new options, e.g., select the time when you want to go in the sauna
        • IF WiFi-enabled, you'll always see your sauna’s status on your phone!
        • Delay setting:  10 min – 12 hrs / Timer has 60 min run time then expires
        • Operating temperature range 104-194°F / Displays °F or °C

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-30C Virta Combi Only | Digital Control + Contactor w/ WiFi App

      Original price was: $1,208.Current price is: $846.

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    • Xenio CX-170 WiFi App+ Digital Control + Contactor

      $795

      • Sensor / Data Cable Options

        Control heater via wall-mounted digital control panel ONLY

        INCLUDES: Digital Controller, Power Relay Box, Sensor (12ft wire) and Data Cable (16ft cable)

        The manufacture warns that the contactor box (provided) can NOT freeze
        In some site conditions, dew can accumulate inside the box with outdoor saunas. If the dew freezes, it can prevent the contactor from working. If you're ordering an outdoor sauna kit, the standard sensor extension kit and control extension cable are perfectly fine.

        ❯ Sensor Extension Kit

        Includes Sensor with Terminal Strip

        ❯ Control Extension Cable

        IMPORTANT: Data cables can NOT be spliced

    ❯ Control Highlights

    ❯ Control Highlights

    • Finlandia F-1T Sauna Heater External Controls

      Original price was: $590.Current price is: $413.

        F-1T sauna heater controls

        • Simple external ANALOG sauna heater controller with a 60 minute timer
        • Wall Mounted
        • Heat indicator light
        • Thermostat Heat Control
        • On/Off switch for the interior light (not dimmable)


        For use with FIN-30, FIN-45 and FIN-60 single phase heaters. No additional relay power is required

    ❯ Control Highlights

    • Finlandia F-2T Sauna Heater External Controls

      Original price was: $536.Current price is: $375.
        Finlandia F-2T sauna heater controls

        The Finlandia F-2T analog control is ideal for larger sauna heaters (8kW+), featuring a 60-minute timer, thermostat, light switch, and indicator light. It is specifically designed for FIN and Club heater models, requiring a separate FX contactor for operation.

        Includes a 60-minute timer, adjustable thermostat, and built-in light switch (ON/OFF only, not a dimmer). Flush-mounts on the wall outside the sauna room.

    ❯ Control Highlights

    • Finlandia F-2 Sauna Heater External Control

      Original price was: $392.Current price is: $308.
        NOTE:  The F-2 control can only be used when an attendant is on duty during hours of operation. Also requires the FX402 contactor power unit.
        F-2 Heater Controls Panels > Finlandia External Controls > FIN-F-2T

        For use with a separate 24 hour time clock in commercial settings when the Sauna is to be on for an extended time

        • Simple external control with a on/off switch for the heater (24 Hr timer required and included)
        • Thermostat
        • On/off switch for the interior light

        F-2 control does NOT include a 60 minute timer. Use the 24HTC with the F-2 wall control and proper contactor in commercial settings where the Sauna will be on all day and shut off at night.  NOTE:  An attendant must be on duty during hours of operation.

    ❯ RELAY BOX REQ w/ F-2T and 1 Phase

    • Finlandia Contactor FX402

      Original price was: $275.Current price is: $197.
        Finlandia FX402 contactor power relay box

        Contactor FX402 is a REQUIRED ITEM for use with SINGLE PHASE sauna heaters with the F-2 or F-2T Controls

        Finlandia FX402 CONTACTOR is the dedicated power-switching module that lets these higher-output sauna heaters operate safely under the control of an F-2T panel. Acting as a heavy-duty relay, the FX402 takes on the full 240V heater load so the wall control can work at low stress while still delivering reliable on/off and timed operation. Its robust contact set is engineered for frequent cycling in warm, humid equipment spaces, helping prevent arcing and premature wear that could lead to nuisance trips or failures.

        Works With:

        • Finlandia Sauna Heaters: 3kW, 4.5kW, 6kW and 8kW
        • Harvia Cilindro Sauna Heaters: 6kW, 8kW
        • Harvia Virta & Combi Sauna Heaters: 6kW, 8kW
        • Club Heaters: 10kW, 12kW, 15kW

    ❯ RELAY BOX REQ w/ F-2T and 3 Phase

    • Finlandia FX404 Contactor Power Relay Box

      Original price was: $338.Current price is: $237.
        Finlandia FX402 contactor power relay box

        REQUIRED ITEM for use with SINGLE PHASE sauna heaters 9kW and above and the F-2T Controls

        Finlandia FX404 CONTACTOR is engineered to handle the substantial load of 9kW and larger CLUB, HPC, and HL models, this contactor isolates heavy current from the wall control, reducing wear on switches and electronics while providing clean, reliable on/off operation. Its robust construction is designed for the elevated temperatures and humidity typical of sauna equipment spaces, helping prevent arcing, overheating, and premature failure

    ❯ RELAY BOX REQUIRED w/ F-2T or F-2 Controls and 3 Phase

    • Finlandia FX303 Relay Contactor Box

      Original price was: $275.Current price is: $197.
        FX404 Cover / Contactor Relay Box

        Contactor for FIN Series 3-phase heaters with F-2 or F-2T Controls

        The Finlandia FX303 Contactor is designed for use with FIN Heaters at 208V/3PH with F-2T and F-2 Controls.

        Model: FX303 / SKU: FX303 For use with all Finlandia FIN 3kW, 4.5kW, 6kW (208V / 3-phase) Heater. Models: FIN-45-3, FIN-60-3, FIN-80-3 heaters and F-2T Control NOTE: A 3-phase site requires this FX303 Relay Contactor Box

    ❯ RELAY BOX REQ w/ F-2T and 3 Phase

    • Finlandia FX503 Relay Contactor Box

      Original price was: $250.Current price is: $195.
        FX404 Cover / Contactor Relay Box
        • The Finlandia FX503 Relay Contactor Box is an essential external power unit engineered to manage high electrical loads explicitly for 208V, 3-phase electrical setups, over 8kW (Club 10, 12, 15 models)
        • The FX503 contactor box must be paired with compatible Finlandia/Harvia components to operate correctly. Required when operating the above heaters with traditional analog F-2T (with a 60-minute timer) or F-2 (simple on/off) wall-mounted control panels.
        • Measuring 6" W x 8" H x 4" D. It can be mounted anywhere outside the sauna room, using either surface or flush mounting.

    Choose Your Type

    ❯ Timer

    • 24 Hour Sauna Timer Analog 24HTC-T101

      $190

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with FIN model heaters using the F-2 control and appropriate FX contactor

        Analog 24 Hour Time Clock

        • The Finlandia 24HTC-T101 is a versatile 24-hour analog time clock programmed for DAILY ON/OFF Times ONLY. See the 24 Hour Sauna Timer Digital 24H7D options IF you need 7 day programming.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Analog 24HTC-T104

      $190
        Analog 24 Hour Time Clock

        Finlandia 24HTC-T104 is a 24-Hour time clock for use with FIN model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T104 is a versatile 24-hour analog time clock programmed for DAILY ON/OFF Times ONLY. See the 24 Hour Sauna Timer Digital 24H7D options IF you need 7 day programming.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all FIN series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Digital 24H7D-1705

      $391

        24 Hour Sauna Timer

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with CLUB model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T101 is a versatile 24-hour, 7-day digital time clock designed to give you complete control over your sauna schedule.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters

    ❯ 24H Timer

    • 24 Hour Sauna Timer Digital 24H7D-1725

      $435

        24 Hour Sauna Timer

        Finlandia 24HTC-T101 is a 24-Hour time clock for use with CLUB model heaters using the F-2 control and appropriate FX contactor

        • The Finlandia 24HTC-T101 is a versatile 24-hour, 7-day digital time clock designed to give you complete control over your sauna schedule.
        • Allows you to program your sauna to heat up automatically, ensuring it’s ready whenever you are, any day of the week.
        • For use with all CLUB series sauna heaters
    • lbs

    Rocks Included

    Rocks Are Included

    All our heaters include the rocks for FREE

    But if you already have rocks or we've sent them to you... then there's NO need to pay for the shipping.

    If NO ROCKS are needed, then simply remove them from your shopping cart

    Includes 4 Boxes of Rocks (180 Lbs)
    • Vulcanite Sauna Rocks

      Sauna Rocks 45# Box Authentic Finnish Vulcanite

  • Click on the image to select the guard rail

    The F-2 Controls is a combination of: Control, a Contactor box and a 24Hr Timer (as per below)

    • Sauna Control Junction Box | Rough Out

      $100

      Sauna Control Junction Box for wall-mounted sauna heater controls

      Ready-to-install junction box for external sauna heater controls.  Sometimes called Rough Out / Rough In Box

      Makes sauna heater control installation easier

      Required for our Modular DIY Sauna Kits! IF you chose one of the controllers below

      Sauna Control Junction Box INCLUDES

      • Cedar housing box / A perfect fit for F-1T, F-2, F-2T and SC-9 series control units
        Rough out box fits controllers sized: 3¾" W x 9¼" H (sometimes called a Rough-in Box)
      • Pre-drilled holes
      • 10 feet of conduit / Deselect conduit if NOT needed

      Your electrician will install power and sensor wires

      • CONDUIT

        If you don't need conduit, deselect

    Spirit Guard Rail

    Guard Rail

    Select the button to read more about the Access Cover

    • Harvia Spirit Safety Rail Guard SP60/90 black

      $267

        Harvia Spirit Safety Rail

        • Provides a protective barrier around the heater without occupying valuable floor space
        • Mount guard rail at your preferred height
        • Defines the hot zone around the heater
        • Stylish Birch surface delivers a comfortable touch
        • Multiple railings are possible

    Control Cover

    • Access Control Rain Cover

      $78

        access control rain cover dims

        access control rain cover examplesPlastic Rainproof Transparent Shield Weatherproof Shell

        • Durable PC Material: Made of high-quality PC plastic material, this product has excellent durability and impact resistance, effectively protecting your sauna control panel
        • Easy access to your control panel from underneath
        • Waterproof Design: Specifically designed to be rainproof, this cover can effectively prevent rainwater hitting your sauna control panel
        • Easy to install, use a screwdriver to attach the rain cover to the wall with screws

        Product Dimensions ‎7.1 x 5.9 x 4.7 inches

      • * PARTS RETURN POLICY *

        All parts purchased have a 30 day warranty and return window.
        Additionally, there will be a 20% restocking fee on all returns.

        ❯ Policy Agreement

SKU HPCS9U1H Categories , , Tags , , , , , , ,

pdf document icon

F-2T Sauna Heater External Controls Manual

Used with Sauna Heater Models: HPC Series 6.8kW, 9kW, 10.5kW (Single and Three Phase)

Finlandia Contactors
Relay required for heaters 8kW and over when F-2T or F-2 wall control is used. All FX Contactor boxes measure 6x8x4″
FX402 (for 8kW 240v/1ph heater)
FX303 (for 3ph heaters up to 8kW)
FX404 (for 240v/1ph heaters)
FX503 (for 208v/3ph heaters)

pdf document icon

Harvia Cilindro Sauna Heater Manuals

Covers Models: HPC Series Models 6kW, 6.8kW, 8kW, 9kW, 10.5kW (Single and Three Phase)

ALL MODELS with SEPARATE CONTROLS:
ALL MODELS with BUILT-IN CONTROLS

Xenio & F-2T Sauna Heater Controls

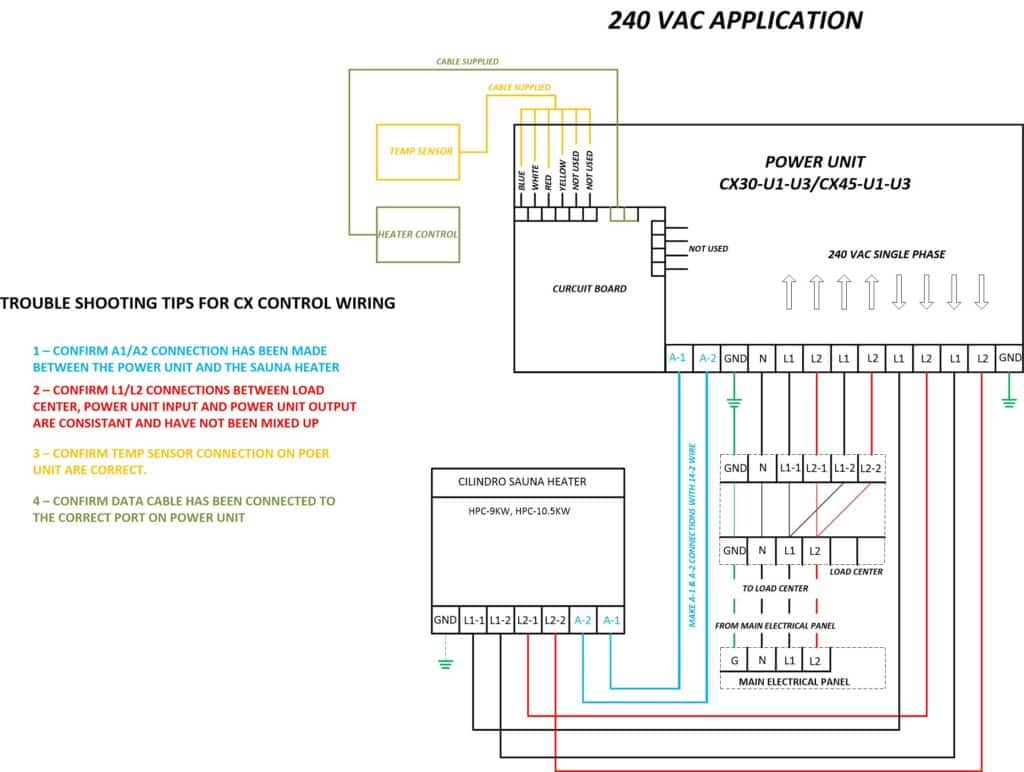

Helpful Wiring Diagram for the Cilindro 9kW and 11kW with Xenio Controls and Contactor Box

Many electrical teams have found themselves puzzled after reviewing the Xenio CX30 and CX45 Sauna Heater Controls Manual. So we set this wiring diagram. After they saw this, we never heard from them again.



Cilindro Wiring Diagram 9 and 11 kw
Cilindro Wiring Diagram 9 and 11 kw

pdf document icon

Harvia Cilindro Sauna Heater Top Ring Manuals

Covers Models: HPC3 and HPC4

Additional information

Weight 40 lbs
Dimensions 14 × 13 × 40 in

Related products
