Description

Fire Protection Reduces the Minimal Distance to the Sauna Wall

Side Wall Distance (without fire protection): 20″

Side Wall Distance (with fire protection): 4-5″

In this photo two sheets of metal are added to protect the sauna wall with spacers in between. Also shown is the cut out for the sauna stove pipe exit.

Note BOTH sheets are of metal do NOT touch the sauna wall. Ventilation behind the sheet metal insures heat does not build up and scorch the wood. Wood that starts to char dark brown or charcoal is a definite sign your fire protection is NOT correctly installed.

Please take all due precautions when installing a wood burning sauna heater at less than the manufacturer’s recommended safe distances.

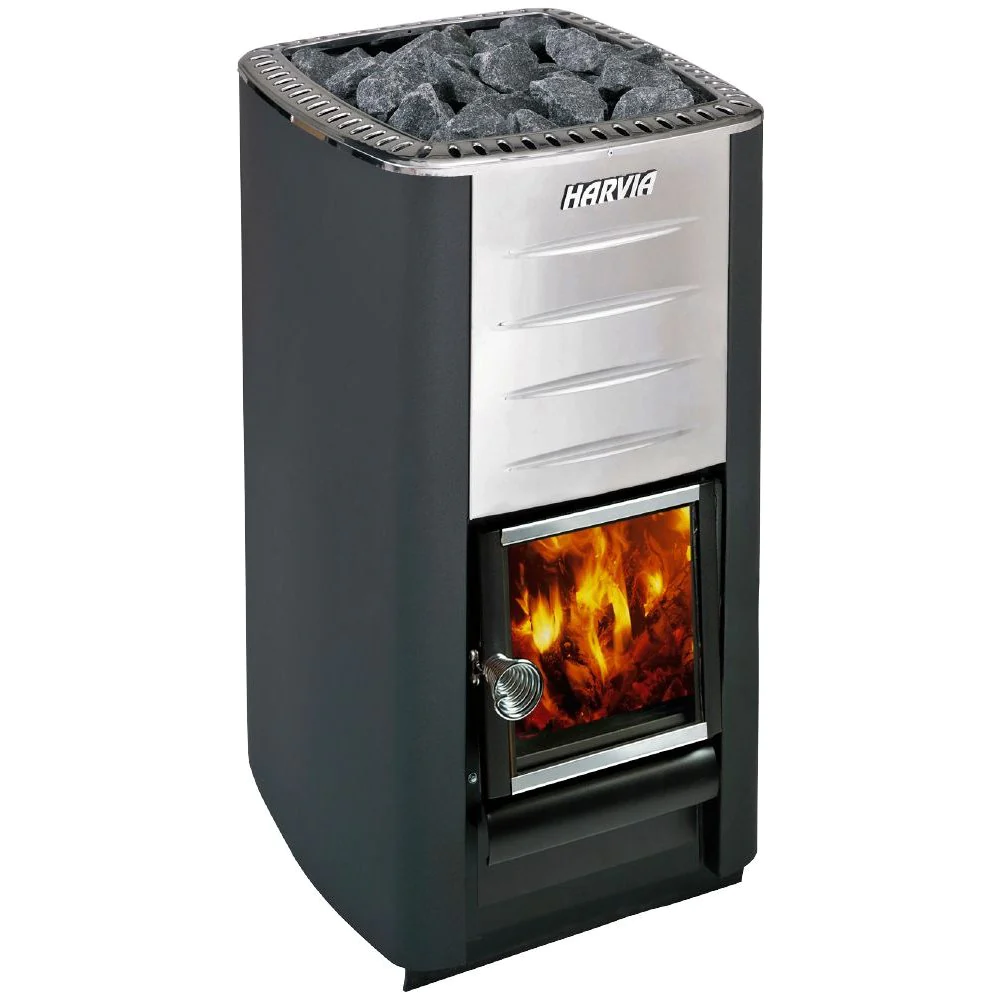

The Harvia M3 has a classic design and is suitable for small saunas. It turns a sauna bath into a pleasurable experience and adds a touch of traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.

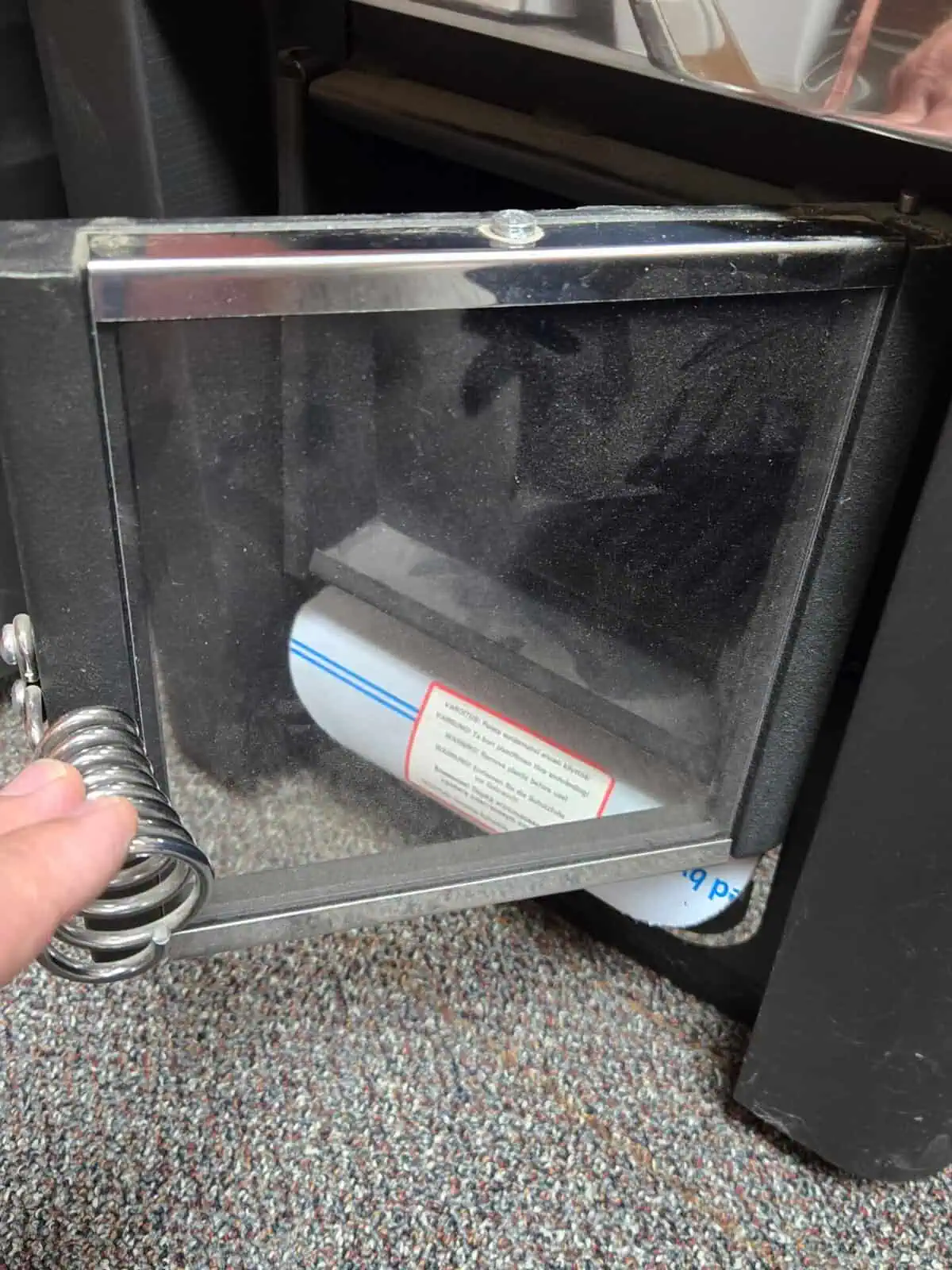

The Harvia M3 is equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The color of the wood burning heater is elegant graphite black and it has a stainless steel air-flow spoiler. The M3 wood burning heater can be equipped with a pipe model water heater.
