Sauna Lumber Calculator | Get Sq Ft and Board Requirements

Measure your Walls Stud to Stud. Our formula will calculate the liner boards required to cover your sauna room dimensions
sauna foil exposed wall
Foil Installation in Commercial Sauna Interior
Studs before sauna foil installed

Sauna Lumber Calculator | Get Sq Ft and Board Requirements

Sauna Lumber Calculator | Measure your Walls Stud to Stud

Sauna Lumber Calculator | Measure your Walls Stud to Stud. Our formula will calculate the liner boards required to cover your sauna room dimensions

To calculate your lumber requirements for your sauna, enter your dimensions below:

  • Measurements of walls # 1-5 of your sauna room (stud to stud)
  • Ceiling Height
  • Door Rough Opening (RO)
  • and Tell us your Joist Direction

Coverage calculation:   2 × (W + L) × H + (W × L) – Door Area = Actual Square Feet of Sauna

  • Enter your Measurements for Walls 1 - 5 (in inches)

    Coverage calculation 2 × (W + L) × H + (W × L) – Door Area = Actual Square Feet of Sauna
    Per WxLxH selection below: 2 × (4 + 6) × 7 + (4 × 6) – 14 = 151 Sq Ft

    Enter inches for each wall. Fields are prefilled for 4x6' Sauna Room with 24x82 Door Rough Opening (RO)

    Generic Sauna Diagram

    6X6SMP SaunaCalc JD FrontToBack

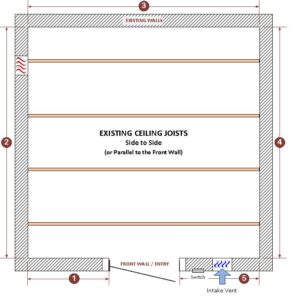

    Generic Sauna Diagram

    6X6SMP SaunaCalc JD SideToSide

    ❯ Joist Direction


    Per the generic sauna diagram, when standing in the doorway... Look up.
    What direction are your ceiling joists?

    ❯ Wall 1

    Wall #1 in inches

    Immediately Left of Door

    Enter the stud-to-stud measurement from the inside of the door stud to corner stud in inches

    NOTE: In some saunas this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush LEFT to the side wall

    Please ROUND UP to the nearest inch

    ❯ Wall 2

    Wall #2 in inches

    Side Wall Left of Door

    Enter the stud-to-stud measurement from corner to corner in inches

    Please ROUND UP to the nearest half inch

    ❯ Wall 3

    Wall #3 in inches

    Back Wall Opposing the Door

    Enter the stud-to-stud measurement from corner to corner in inches

    Please ROUND UP to the nearest half inch

    ❯ Wall 4

    Wall #4 in inches

    Side Wall Right of Door

    Enter the stud-to-stud measurement from corner to corner in inches

    Please ROUND UP to the nearest half inch

    ❯ Wall 5

    Wall #5 in inches

    Immediately Right of Door

    Enter the stud-to-stud measurement from the door to corner in inches

    NOTE: In some sauna layouts, this number will be "0" (zero or only the thickness of one stud), especially IF your door's edge is flush RIGHT to the side wall.

    Please ROUND UP to the nearest half inch

    We do NOT stock 1x4" Cedar TnG material > 8 feet. In 1x3" material – YES!

    ❯ Ceiling Height

    ❯ Door RO Width

    ❯ Door RO Height

    Actual Sq Ft

    ❯ Panel Width

    1x3″ TnG Cross Section

    6ft 1x3 T&G Cedar

    1x4″ TnG Cross Section

    1x4 T&G Cross Section with Dims

    TnG Board Requirements for Your Sauna Project

    Here is your shopping list!  Use this list to set your bundle quantity below

    Trim Pack: List to cover interior seams and the door

    1x3 Cedar Paneling

    Use the shopping list above to select the bundle quantities for your sauna project

    • 1ft 1x3 TnG Cedar Paneling Bundle (1.09 sq ft)

      $19.69

      • Grade

    • 2ft 1x3 TnG Cedar Paneling Bundle (3.28 sq ft)

      $39.38

      • Grade

    • 3ft 1x3 TnG Cedar Paneling Bundle (3.28 sq ft)

      $59.06

      • Grade

    • 4ft 1x3 TnG Cedar Paneling Bundle (4.37 sq ft)

      $78.75

      • Grade

    • 5ft 1x3 TnG Cedar Paneling Bundle (5.47 sq ft)

      $98.43

      • Grade

    • 6ft 1x3 TnG Cedar Paneling Bundle (6.56 sq ft)

      $118.12

      • Grade

    • 7ft 1x3 TnG Cedar Paneling Bundle (7.65 sq ft)

      $138

      • Grade

    • 8ft 1x3 TnG Cedar Paneling Bundle (8.75 sq ft)

      $157.50

      • Grade

    • 10ft 1x3 TnG Cedar Paneling Bundle (10.94 sq ft)

      $196.88

      • Grade

    • 12ft 1x3 TnG Cedar Paneling Bundle (13.13 sq ft)

      $236.25

      • Grade

    1x4 Cedar Paneling

    Use the shopping list above to select the bundle quantities for your sauna project

    • 1ft 1x4 T&G Cedar Paneling Bundle (1.5 sq ft)

      $27

    • 2ft 1x4 T&G Cedar Paneling Bundle (3 sq ft)

      $54

    • 3ft 1x4 T&G Cedar Paneling Bundle (4.5 sq ft)

      $81

    • 4ft 1x4 TnG Cedar Paneling Bundle (6 sq ft)

      $108

    • 5ft 1x4 T&G Cedar Paneling Bundle (7.5 sq ft)

      $135

    • 6ft 1x4 T&G Cedar Paneling Bundle (9 sq ft)

      $162

    • 7ft 1x4 T&G Cedar Paneling Bundle (10.5 sq ft)

      $189

    • 8ft 1x3 TnG Cedar Paneling Bundle (8.75 sq ft)

      $157.50

      • Grade
