Rail and Stile Sauna Door / 28×82 RO + 16×67 Glass

Rail Stile Sauna Door 24x72 RO Feature Image
Large glass sauna door with etched glass
16x67 bottom of door
large glass sauna door 16x67
sauna door 16x67 in indoor sauna2

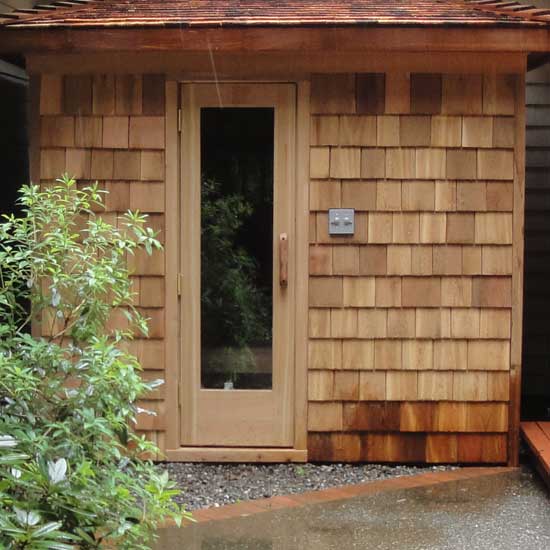

sauna door 16x67 in outdoor prefab sauna, shingled roof
sauna door 16x67 rain glass

Rail and Stile Sauna Door / 28×82 RO + 16×67 Glass

Rail and Stile Sauna Door with large glass window framed for a 28×82″ R.O. / Fits ceilings 7′0″+

Constructed of 100% western red cedar with 16×67″ glass for maximum visibility

Large glass sauna door FEATURES

  • Sealed/tempered, double-paned and insulated 16×67″ glass
  • Constructed from clear 2×4″ core cedar horizontal rails and vertical stiles
  • Framed and pre-hung / NO threshold / Actual door: 26×80½″ / Thick: 1⅜″
  • Set your custom jamb width with more glass finishes available
  • Includes two self-closing hinges, two standard hinges and one door handle

Our door makers use straight grain wood (not open grain where ever possible). Widely used in homes, gyms and spas!

All sauna doors must open out! A good quality sauna door assures a safe functioning sauna. Simply push to open when leaving the sauna. This is a safety measure ensuring sauna bathers have a quick exit. The handle is attached on the outside to pull open. The self-closing hinge ensures the sauna door closes behind you. Add a second handle, optional.
LEAD TIMES FOR DOORS: 8 weeks

$1,665

  • Application

    Is this Door Part of a Sauna Kit or Materials Package?

    If so, we'll add it to your sauna drawing for you to review later.

    Rail & Stile Door Options

    Placement

    ❯ Door Swing

    ❯ Jamb Width

    Measure Your Door Jamb

    All our sauna doors include UP TO a 51/4″ jamb
    Your door jamb is the sum of your wall thickness, e.g.:
    • 3/4″ T&G cedar — 11/16″
    • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
    • Drywall — usually 1/2″

    DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

    Trim covers the gap between the jamb and the wall stud

    Sauna Door Jamb diagram

    Sauna Door Jamb Diagram

    IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

    Glass / Finish

    ❯ Jamb Width

    Measure Your Door Jamb

    All our sauna doors include UP TO a 51/4″ jamb
    Your door jamb is the sum of your wall thickness, e.g.:
    • 3/4″ T&G cedar — 11/16″
    • Wall studs — if 2x4″ = 31/2″; if 2x6″ = 51/2″
    • Drywall — usually 1/2″

    DOOR JAMB = 43/4″ Round up to the nearest 1/8″ and enter: "4.75"; It's best to be slightly thicker than, i.e. "proud" of your wall

    Trim covers the gap between the jamb and the wall stud

    Sauna Door Jamb diagram

    Sauna Door Jamb Diagram

    IF your jamb > 7.5″, enter 7.5 and the jamb extension option will show

    Jamb Extension Material

    Jamb Extension Material

    If your door jamb is greater than 7½", then include our 3½" jamb extension — all clear cedar material

  • Trim Pack

    Door Trim Pack

    The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

    Trim Pack

    Door Trim Pack

    The trim pack covers seams between the door jamb and the wall with 1x3″ S4S clear cedar material

    Hinge Finish

    Hinge Finnish

    Standard hinges have a Brass finish. Silver is an option

    Residential doors include 1 self-closing bomber hinge and 2 conventional hinges. Commercial doors include 2 self-closing bomber hinges and 2 conventional hinges

    Door Handle

SKU RS-28X82-LW Categories , , Tags , , ,

Description

Large glass in the sauna door lets in the most light

Window provides maximum visibility for bathers

  • Framed in a jamb per your dimension
  • Sauna door opens out with self-closing hinge and handle included
  • Constructed from solid core cedar rails and styles
  • Actual sauna door size 22″ x 80½”
  • 16″x67″ double-paned and sealed tempered glass window
  • Includes one cedar door handle

Our sauna doors are widely used in homes, gyms and spas! Enjoy. Let us know if you have any sauna questions.

Additional information

Weight 200 lbs
Dimensions 30 × 6 × 84 in
